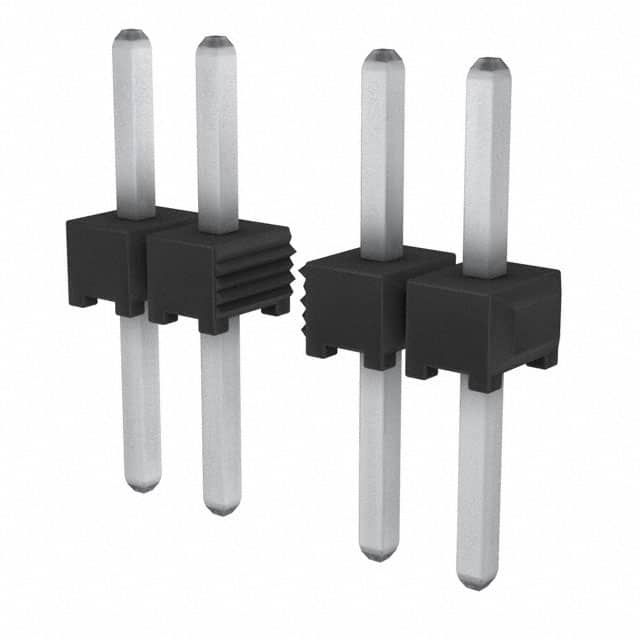

TMM-110-02-T-S Unshrouded male pin header, 10 positions, single row, 2.00mm pitch, through-hole solder termination, tin plated contacts.
Mfr Part #:

TMM-110-02-T-S

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Unshrouded male pin header, 10 positions, single row, 2.00mm pitch, through-hole solder termination, tin plated contacts.
✓ Total Stock: 3,362 pcs
$ Price Range: $0.23 - $0.92

TMM-110-02-T-S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,362 pcs
On Request
3362 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-110-02-T-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TMM-110-02-T-S Description

Short technical summary and product information.

The TMM-110-02-T-S is a low-profile Tiger Eye header strip from Samtec's TMM series, featuring a 2.00mm pitch. This single row connector has 10 positions loaded with male square pins made of phosphor bronze and plated with matte tin. The unshrouded header uses a push-pull fastening mechanism and is designed for board-to-board or cable connections.



The insulator is molded from black liquid crystal polymer (LCP) with a height of 1.50mm. The contacts have a length of 3.71mm, and the overall contact length is 8.20mm. Through-hole mounting with solder termination ensures reliable mechanical attachment.



Electrical ratings include 3.2A per contact (with 2 pins powered) and a voltage rating of 281 VAC when mated with SQW or 250 VAC when mated with SQT. The operating temperature range is -55°C to 105°C with tin plating. The part is lead-free solderable and supplied in bulk packaging.

TMM-110-02-T-S Quick Information

Product Type: Header, Male Pins
Series: TMM
Canonical Name: Samtec TMM Series 10 Position 2.00mm Pitch Single Row Unshrouded Male Pin Header, Through Hole, Tin Plating
Subcategory: Unshrouded Header

TMM-110-02-T-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

TMM-110-02-T-S Estimated Pricing

Qty Low High
1+ $0.92 $0.92
50+ $0.76 $0.76
100+ $0.66 $0.66
500+ $0.57 $0.57
1,000+ $0.46 $0.46
2,000+ $0.37 $0.37
5,000+ $0.29 $0.29
10,000+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-110-02-T-S Features

  • 10 positions in single row configuration.
  • 2.00mm pitch for compact designs.
  • Through-hole termination for secure mounting.
  • Tin plated phosphor bronze contacts.
  • Operates from -55°C to 105°C.

TMM-110-02-T-S Applications

  • Ideal for board-to-board interconnects.
  • Suitable for cable-to-board connections.
  • Used in low-profile industrial electronics.
  • Compatible with Samtec CLT, SQT, SQW mates.

TMM-110-02-T-S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TMM-110-02-T-S have?

10 positions, all loaded.

What is the pitch of this connector?

2.00mm (0.079 inches).

What is the current rating per contact?

3.2A per contact (2 pins powered).

What is the voltage rating?

Up to 281 VAC when mated with SQW, or 250 VAC when mated with SQT.

What is the mounting type?

Through-hole with solder termination.

What is the operating temperature range?

-55°C to 105°C with tin plating.

What is the contact material and finish?

Phosphor bronze contacts with tin plating.
