Mfr Part #:

TMM-109-01-T-S-RA

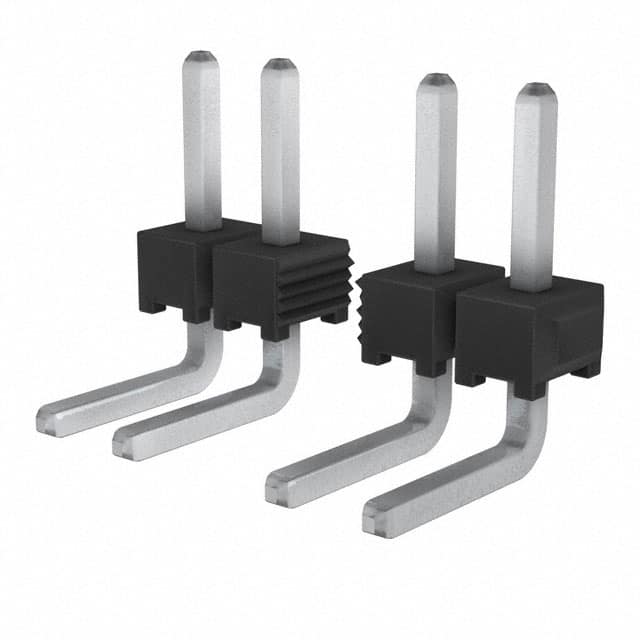

The Samtec Inc. TMM-109-01-T-S-RA is a 9-position, single-row pin header designed for board-to-board or cable applications. It features a 2.00mm pitch and a right-angle mounting orientation.

✓ Total Stock: 9,013 pcs

$ Price Range: $0.77

TMM-109-01-T-S-RA Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	6,000 pcs On Request	6000 pcs	On Request	1	On Request	On Request	1123+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	3,013 pcs On Request	3013 pcs	On Request	1	On Request	On Request	11+	On Request	On Request

TMM-109-01-T-S-RA Description

Short technical summary and product information.

This Samtec Inc. TMM series header, part number TMM-109-01-T-S-RA, is a 9-position, single-row, unshrouded male pin header. It is designed for through-hole termination with a right-angle orientation, making it suitable for board-to-board or cable connections.

The connector features a 2.00mm (0.079") pitch and a 3.20mm (0.126") contact length. The insulator material is Black Liquid Crystal Polymer (LCP), and the terminals are made of Phosphor Bronze with a Tin contact finish. It offers a current rating of 3.2A per contact and operates within a temperature range of -55°C to 105°C.

This header supports up to 8 Gbps data rates and is lead-free solderable. It is part of Samtec's TMM series, known for its flexibility and high mating cycle capabilities, with options for extended life products when using gold plating.

TMM-109-01-T-S-RA Quick Information

Product Type: Header

Series: TMM

Canonical Name: Samtec Inc. TMM Series 9-Position Single-Row Through Hole Right Angle Header, 2.00mm Pitch, Tin Plated

Subcategory: Rectangular Connectors

TMM-109-01-T-S-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

TMM-109-01-T-S-RA Estimated Pricing

Qty	Low	High
1+	$0.77	$0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-109-01-T-S-RA Features

9-position, single-row, right-angle header.
2.00mm pitch for compact designs.
3.2A current rating per contact.
Operating temperature from -55°C to 105°C.
Supports up to 8 Gbps data rates.

TMM-109-01-T-S-RA Applications

Suitable for board-to-board connections.
Ideal for cable assembly applications.
Used in high-density interconnects.
Supports high-speed data transmission.

TMM-109-01-T-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this header have?

9 positions.

What is the pitch?

2.00mm (0.079 inches).

What is the current rating?

3.2A per contact.

What is the voltage rating?

250 VAC when mated with SQT series, 281 VAC when mated with SQW series.

What mounting type does it use?

Through hole, right angle mounting.

Is this product lead-free?

Yes, it is lead-free solderable.

What is the operating temperature range?

-55°C to 105°C with tin plating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	3.20mm (0.126")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2A per Contact
Data Rate	Up to 8 Gbps
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	2.00mm (0.079")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	Through Hole
Mounting Type	Through Hole, Right Angle
Number of Positions	9 Positions
Number of Positions Loaded	All
Number of Rows	1 Row
Operating Temperature	-55°C ~ 105°C
Pitch	2.00mm (0.079")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Voltage Rating	250 VAC
