| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

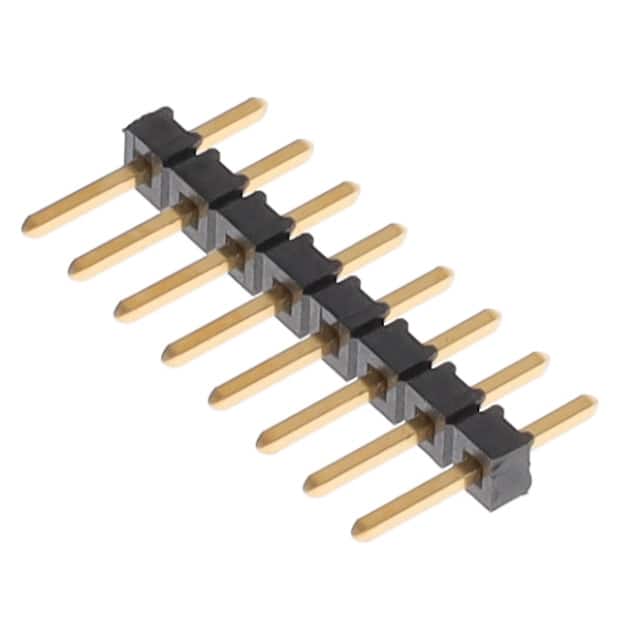

The Samtec TMM-108-03-G-S is a 2.00mm pitch low profile pin header from the TMM series. It has 8 positions in a single row with through-hole termination. The contacts are made of phosphor bronze with a gold finish (20.0µin) on the post and matte tin on the tail. The insulator is black liquid crystal polymer (LCP).
This header is rated for 3.2A per contact and can operate over a temperature range of -55°C to 125°C. The voltage rating is 281 VAC when mated with SQW series and 250 VAC when mated with SQT series. It supports data rates up to 8 Gbps.
The unshrouded push-pull design allows for board-to-board or cable connections. The overall contact length is 0.323" (8.20mm) with an insulation height of 1.50mm. The part is lead-free solderable and comes in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
| 50+ | $1.20 | $1.20 |
| 100+ | $1.09 | $1.09 |
| 500+ | $0.90 | $0.90 |
| 1,000+ | $0.77 | $0.77 |
| 2,000+ | $0.66 | $0.66 |
| 5,000+ | $0.55 | $0.55 |
| 10,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.00mm (0.079 inches).
3.2A per contact.
281 VAC when mated with SQW, 250 VAC when mated with SQT.
Through hole.
-55°C to 125°C.
Gold, 20.0µin (0.51µm) on contact area.
