Mfr Part #:

TMM-108-03-G-D

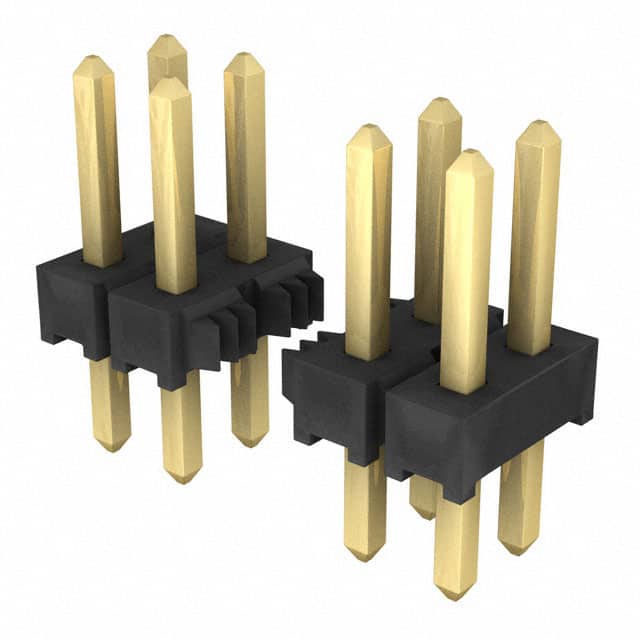

Conn Header Vertical 16POS 2mm by Samtec. This unshrouded male pin header features 2 rows, 2.00mm pitch, through-hole mounting, and gold-plated phosphor bronze contacts.

✓ Total Stock: 16 pcs

$ Price Range: $0.98 - $2.01

TMM-108-03-G-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	16 pcs On Request	16 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TMM-108-03-G-D Description

Short technical summary and product information.

The TMM-108-03-G-D is a 16-position, 2-row unshrouded male pin header from Samtec's TMM series. It features a 2.00mm (0.079 inch) pitch and row spacing, with a square 0.020 inch phosphor bronze contact system plated with 20 microinches of gold. The insulation is black Liquid Crystal Polymer (LCP) with a height of 1.50mm. The overall contact length is 8.20mm (0.323 inches), with a mating contact length of 4.00mm. This header is rated for 3.2A per contact and operates over a temperature range of -55°C to 125°C. The unshrouded design allows for push-pull fastening and supports board-to-board or cable applications. The through-hole solder termination ensures reliable mechanical attachment. The connector is capable of 8 Gbps data rates, suitable for high-speed signal integrity.

TMM-108-03-G-D Quick Information

Product Type: Pin Header

Series: TMM

Canonical Name: Samtec TMM series 2.00mm pitch 16-position unshrouded male pin header

Subcategory: Unshrouded Header

TMM-108-03-G-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

Lead Free: Yes

TMM-108-03-G-D Estimated Pricing

Qty	Low	High
1+	$2.01	$2.01
50+	$1.86	$1.86
100+	$1.58	$1.58
500+	$1.54	$1.54
1,000+	$1.38	$1.38
2,000+	$1.25	$1.25
5,000+	$1.08	$1.08
10,000+	$0.98	$0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-108-03-G-D Features

16 positions in 2 rows.
2.00mm pitch spacing.
Gold-plated phosphor bronze contacts.
Through-hole solder termination.
Push-pull fastening type.

TMM-108-03-G-D Applications

Board to board or cable style.
Low profile interconnect applications.
High-density connector designs.
Up to 8 Gbps signal integrity.

TMM-108-03-G-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does TMM-108-03-G-D have?

It has 16 positions arranged in 2 rows.

What is the pitch of TMM-108-03-G-D?

The pitch is 2.00mm (0.079 inches).

What is the current rating per contact?

3.2A per contact.

What is the mounting type?

Through-hole.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze with 20µin gold plating.

What is the insulation material?

Liquid Crystal Polymer (LCP).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	20.0µin (0.51µm)
Contact Length	4.00mm (0.157")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2A per Contact
Data Rate	8 Gbps
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	1.50mm (0.059")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.0 mm
Lead Style	Straight
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.323" (8.20mm)
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
