Mfr Part #:

TMM-108-01-L-S-RA

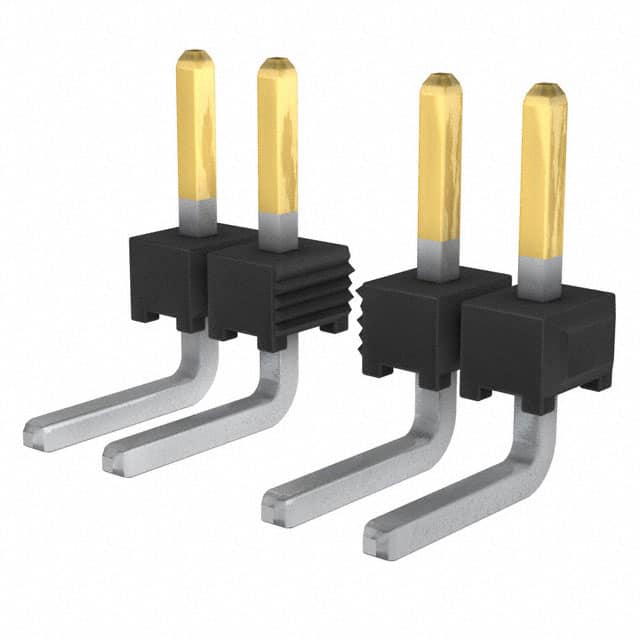

Samtec TMM-108-01-L-S-RA is a 2mm pitch low profile pin header with 8 positions in a single row, right angle orientation, through hole termination, and gold on post plating.

✓ Total Stock: 5 pcs

$ Price Range: $0.29 - $1.27

TMM-108-01-L-S-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Emiteli ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TMM-108-01-L-S-RA Description

Short technical summary and product information.

The Samtec TMM-108-01-L-S-RA is a 2.00mm pitch low profile pin header from the TMM series. It features 8 positions in a single row with a right angle through hole mounting style. The contacts are made of phosphor bronze with a gold on post and matte tin on tail finish, providing reliable electrical performance.

This connector is rated for 3.2A per contact and supports data rates up to 8 Gbps. It is designed for board-to-board or cable applications and operates over a temperature range of -55°C to +125°C. The insulation is black liquid crystal polymer (LCP) with a height of 2.00mm.

The TMM-108-01-L-S-RA is unshrouded with a push-pull fastening type. It is packaged in bulk and is lead-free solderable. Compliance with RoHS, REACH, and MSL level 1 is indicated but unverified.

TMM-108-01-L-S-RA Quick Information

Product Type: Header, Male Pins

Series: TMM

Canonical Name: Samtec TMM-108-01-L-S-RA 2mm Low Profile Pin Header, 8 Positions, 1 Row, Right Angle, Through Hole

Subcategory: Male Pins

TMM-108-01-L-S-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

TMM-108-01-L-S-RA Estimated Pricing

Qty	Low	High
1+	$1.27	$1.27
50+	$1.10	$1.10
100+	$0.89	$0.89
500+	$0.74	$0.74
1,000+	$0.61	$0.61
2,000+	$0.52	$0.52
5,000+	$0.42	$0.42
10,000+	$0.29	$0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-108-01-L-S-RA Features

2mm pitch low profile header.
8 positions in single row.
Right angle through hole mounting.
Gold on post, matte tin on tail plating.
Rated for 3.2A per contact.

TMM-108-01-L-S-RA Applications

Board-to-board and cable connections.
High-speed data up to 8 Gbps.
Low profile design for space-constrained applications.
Industrial and automotive electronics.

TMM-108-01-L-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TMM-108-01-L-S-RA have?

It has 8 positions in a single row.

What is the pitch of this header?

The pitch is 2.00mm (0.079 inches).

What is the current rating per contact?

The current rating is 3.2A per contact.

What is the voltage rating?

281 VAC when mated with SQW, and 250 VAC when mated with SQT.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to +125°C.

What is the maximum data rate supported?

Up to 8 Gbps.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold on post, Matte Tin on tail
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.20mm (0.126")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2A per Contact
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	2.00mm (0.079")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.0 mm
Lead Style	Through Hole, Right Angle
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 125°C
Pitch	2.00mm (0.079")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
