| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

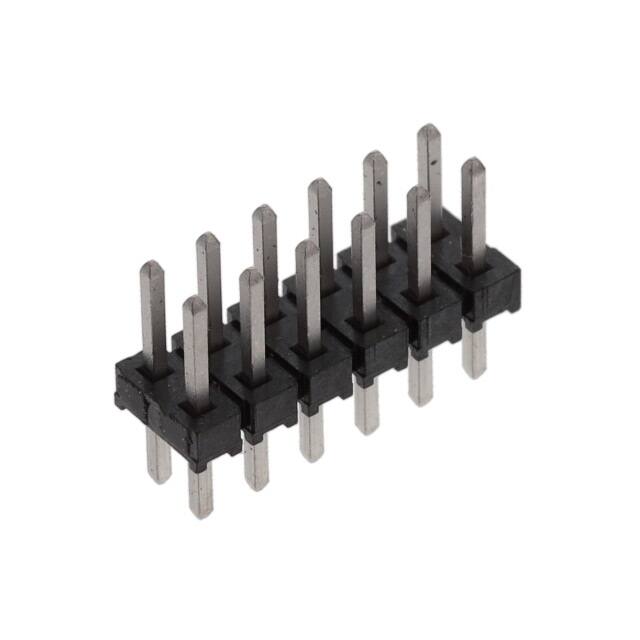

The Samtec TMM-106-03-T-D is a 12-position, 2-row unshrouded header from the TMM series. It features a 2.00mm pitch and 2.00mm row spacing, designed for board-to-board or cable-to-board interconnects. The header uses a through hole solder termination with a push-pull fastening mechanism. The insulator is made of black Liquid Crystal Polymer (LCP) rated for -55°C to 105°C with tin finish. Contacts are phosphor bronze with tin plating. The current rating is 3.2A per row when 2 pins are powered. Voltage rating is 281 VAC when mated with SQW series and 250 VAC when mated with SQT series. The overall contact length is 8.20mm, though this dimension corresponds to lead style -01 per the datasheet; the -03 lead style on this part has different dimensions. The header is lead-free solderable and RoHS3 compliant (unverified). Mating connectors include CLT, SQT, SQW, ESQT, TLE, SMM, and MMS.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.91 | $0.91 |
| 50+ | $0.77 | $0.77 |
| 100+ | $0.62 | $0.62 |
| 500+ | $0.52 | $0.52 |
| 1,000+ | $0.43 | $0.43 |
| 2,000+ | $0.37 | $0.37 |
| 5,000+ | $0.35 | $0.35 |
| 10,000+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions arranged in 2 rows, all positions loaded.
2.00mm (0.079") with 2.00mm row spacing.
3.2A per row when 2 pins are powered.
281 VAC when mated with SQW; 250 VAC when mated with SQT.
Through hole solder termination.
-55°C to 105°C with tin finish.
Tin plating on phosphor bronze contacts.
