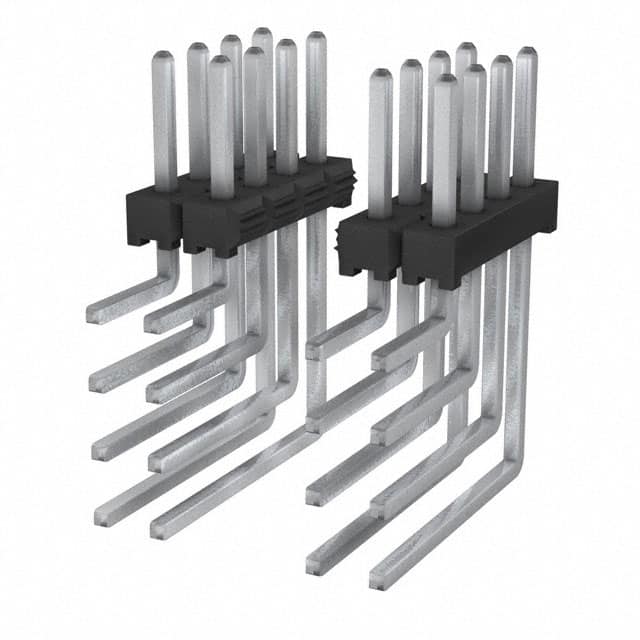

TMM-105-01-T-Q-RA Samtec TMM-105-01-T-Q-RA is a 20-position, 4-row, 2.00mm pitch right-angle through-hole unshrouded male pin header with tin-plated phosphor bronze contacts.
Mfr Part #:

TMM-105-01-T-Q-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TMM-105-01-T-Q-RA is a 20-position, 4-row, 2.00mm pitch right-angle through-hole unshrouded male pin header with tin-plated phosphor bronze contacts.
✓ Total Stock: 4 pcs
$ Price Range: $0.84 - $1.41

TMM-105-01-T-Q-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-105-01-T-Q-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TMM-105-01-T-Q-RA Description

Short technical summary and product information.

The Samtec TMM-105-01-T-Q-RA is a 20-position, 4-row unshrouded male pin header from the TMM series, featuring a 2.00mm pitch and right-angle through-hole mounting. This connector is designed for board-to-board or cable applications, offering a compact and reliable interconnection solution.



Key specifications include a current rating of 3.2A per contact, a voltage rating of 281 VAC when mated with SQW series connectors, and an operating temperature range of -55°C to +105°C. The contacts are made of phosphor bronze with a matte tin plating, and the insulator is black liquid crystal polymer (LCP).



The right-angle orientation and unshrouded design facilitate easy mating and space-saving layouts on PCBs. The push-pull fastening type ensures simple insertion and removal. This header is lead-free solderable and RoHS3 compliant.

TMM-105-01-T-Q-RA Quick Information

Product Type: Header, Male Pins
Series: TMM
Canonical Name: Samtec TMM Series 2.00mm Pitch 20-Position 4-Row Right-Angle Through-Hole Unshrouded Male Pin Header
Subcategory: Unshrouded Header

TMM-105-01-T-Q-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

TMM-105-01-T-Q-RA Estimated Pricing

Qty Low High
1+ $1.41 $1.41
57+ $1.23 $1.23
114+ $1.13 $1.13
513+ $0.98 $0.98
1,026+ $0.93 $0.93
2,052+ $0.88 $0.88
5,016+ $0.84 $0.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-105-01-T-Q-RA Features

  • 20-position 4-row unshrouded male pin header.
  • 2.00mm pitch with right-angle through-hole mounting.
  • Tin-plated phosphor bronze contacts for reliable conductivity.
  • Rated for 3.2A per contact and 281 VAC.
  • Operating temperature range -55°C to +105°C.

TMM-105-01-T-Q-RA Applications

  • Ideal for board-to-board interconnection applications.
  • Suitable for cable-to-board connection systems.
  • Used in compact electronic assemblies requiring right-angle headers.

TMM-105-01-T-Q-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TMM-105-01-T-Q-RA have?

20 positions, loaded all, in 4 rows.

What is the pitch of this header?

2.00mm (0.079 inches).

What is the current rating per contact?

3.2A per contact.

What is the voltage rating?

281 VAC when mated with SQW series connectors; 250 VAC when mated with SQT series connectors.

What is the mounting type?

Through-hole, right-angle.

What is the operating temperature range?

-55°C to +105°C.

What is the contact material and finish?

Phosphor bronze contacts with matte tin plating.
