Mfr Part #:

TMM-105-01-T-D-SM

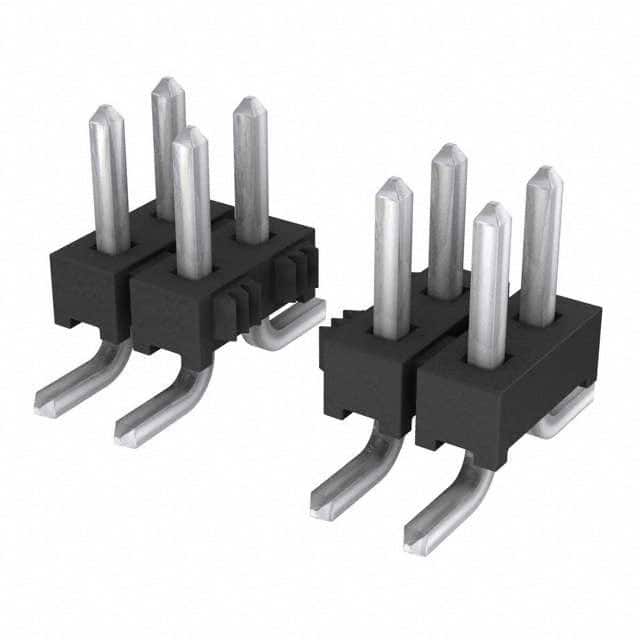

Samtec TMM-105-01-T-D-SM is a 10 position, 2 row, 2.00mm pitch surface mount unshrouded header with tin plated phosphor bronze contacts.

✓ Total Stock: 471 pcs

$ Price Range: $0.22 - $1.01

TMM-105-01-T-D-SM Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	471 pcs On Request	471 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TMM-105-01-T-D-SM Description

Short technical summary and product information.

The Samtec TMM-105-01-T-D-SM is a 10-position, 2-row unshrouded header from the TMM series. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact board-to-board or cable-to-board applications. The header uses surface mount termination with solder tails, and the contacts are made of phosphor bronze with a matte tin plating.

The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The header is rated for 3.2A per contact (2 pins powered) and has an operating temperature range of -55°C to +105°C. It is lead-free solderable and has a maximum SMT lead coplanarity of 0.15mm. The unshrouded design allows for push-pull mating with compatible Samtec sockets such as the SQT, SQW, CLT, and TCSD series.

TMM-105-01-T-D-SM Quick Information

Product Type: Header, Male Pins

Series: TMM

Canonical Name: Samtec TMM-105-01-T-D-SM 10 Position 2.00mm Pitch Surface Mount Unshrouded Header

Subcategory: Unshrouded Header, Male Pins

TMM-105-01-T-D-SM Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable: Yes

TMM-105-01-T-D-SM Estimated Pricing

Qty	Low	High
1+	$1.01	$1.01
57+	$0.77	$0.77
114+	$0.62	$0.62
513+	$0.51	$0.51
1,026+	$0.47	$0.47
2,052+	$0.40	$0.40
5,016+	$0.31	$0.31
10,032+	$0.22	$0.22
25,023+	$0.22	$0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-105-01-T-D-SM Features

10 position 2 row unshrouded header.
2.00mm pitch with 2.00mm row spacing.
Surface mount solder termination.
Tin plated phosphor bronze contacts.
Rated for 3.2A per contact.

TMM-105-01-T-D-SM Applications

Board-to-board interconnect applications.
Cable-to-board connection systems.
Compact electronic device assemblies.

TMM-105-01-T-D-SM FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TMM-105-01-T-D-SM have?

10 positions in 2 rows, all positions loaded.

What is the pitch of this header?

2.00mm (0.079 inches) with 2.00mm row spacing.

What is the current rating?

3.2A per contact (2 pins powered).

What is the voltage rating?

281 VAC when mated with SQW series; 250 VAC when mated with SQT series.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to +105°C.

What is the insulation material and flammability rating?

Black liquid crystal polymer (LCP) with UL94 V-0 rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	3.20mm (0.126")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2A per Contact
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	1.50mm (0.059")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	Smd
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
Voltage Rating	281 VAC mated with SQW; 250 VAC mated with SQT
