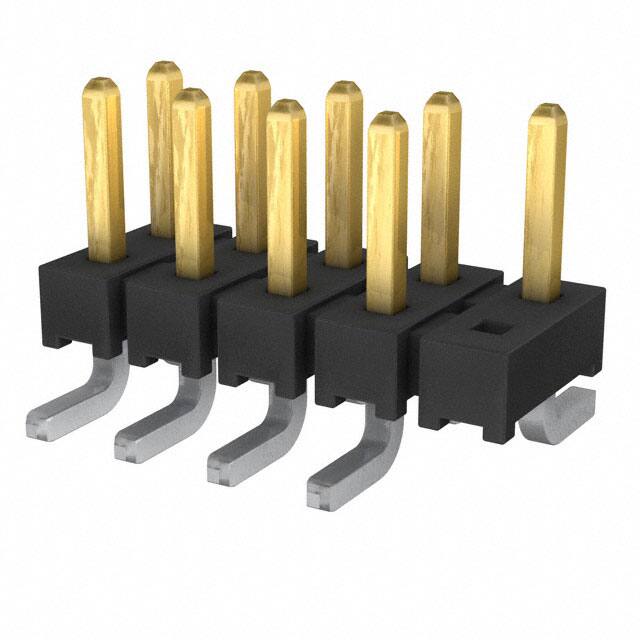

TMM-105-01-S-D-SM-009-P-TR The Samtec TMM-105-01-S-D-SM-009-P-TR is a 2mm pitch pin header designed for surface mount applications. It offers 10 positions and a current rating of 3.2A per contact.
Mfr Part #:

TMM-105-01-S-D-SM-009-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec TMM-105-01-S-D-SM-009-P-TR is a 2mm pitch pin header designed for surface mount applications. It offers 10 positions and a current rating of 3.2A per contact.
✓ Total Stock: 350 pcs
$ Price Range: $0.77

TMM-105-01-S-D-SM-009-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-105-01-S-D-SM-009-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TMM-105-01-S-D-SM-009-P-TR Description

Short technical summary and product information.

This Samtec TMM series pin header, part number TMM-105-01-S-D-SM-009-P-TR, is a 2mm pitch connector suitable for board-to-board or cable applications. It features a surface mount termination and an unshrouded style.



The header has 10 positions loaded with 9 pins, utilizing a square phosphor bronze contact with a tin finish and 30µin thickness. The insulation is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating and a height of 1.50mm. It operates within a temperature range of -55°C to 125°C.



Designed for flexibility, the TMM series offers various configurations. This specific model is designed for pick and place assembly and features a push-pull fastening type. The current rating is 3.2A per contact, and the pitch is 2.00mm.



Key specifications include a 2-row configuration, a contact length of 3.20mm, and a surface mount type. The product is packaged in tape and reel with 425 parts per package.

TMM-105-01-S-D-SM-009-P-TR Quick Information

Product Type: Pin Header
Series: TMM
Canonical Name: Samtec Inc. TMM Series 2mm Pitch Surface Mount Pin Header, 10 Positions
Subcategory: Pin Header

TMM-105-01-S-D-SM-009-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMM-105-01-S-D-SM-009-P-TR Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-105-01-S-D-SM-009-P-TR Features

  • 2mm pitch surface mount pin header.
  • 10 positions with 9 loaded pins.
  • 3.2A current rating per contact.
  • Phosphor bronze contacts with tin finish.
  • LCP insulation with UL94 V-0 rating.

TMM-105-01-S-D-SM-009-P-TR Applications

  • Suitable for board-to-board connections.
  • Ideal for cable assembly applications.
  • Designed for automated pick and place.
  • Used in applications requiring 2mm pitch.

TMM-105-01-S-D-SM-009-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

10 positions with 9 loaded (pin 9 omitted).

What is the pitch of this header?

2.00mm (0.079")

What is the current rating per contact?

3.2A per contact.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin with 30µin (0.76µm) thickness.

What is the insulation material?

Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating.
