| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

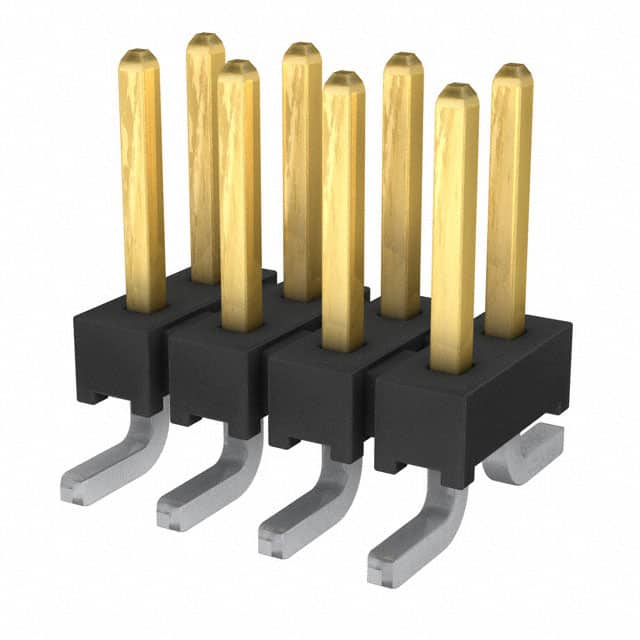

The Samtec TMM-104-06-L-D-SM-P-TR is a 2.00mm pitch surface mount unshrouded header from the TMM series. It has 8 positions arranged in 2 rows with all positions loaded. The connector uses male pin contacts made of phosphor bronze with a tin finish and a contact length of 4.27mm.
This header is designed for board-to-board or cable applications and features a push-pull fastening type. The insulator is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. It includes a pick and place pad for automated assembly and is packaged in tape and reel.
Electrical ratings include 3.2A per contact current rating and a voltage rating of 281 VAC when mated with SQW series or 250 VAC when mated with SQT series. The operating temperature range is -55°C to +125°C with gold plating on the contact post.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
| 50+ | $1.55 | $1.55 |
| 100+ | $1.32 | $1.32 |
| 400+ | $1.12 | $1.12 |
| 800+ | $0.90 | $0.90 |
| 2,000+ | $0.83 | $0.83 |
| 4,800+ | $0.80 | $0.80 |
| 10,000+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows with all positions loaded.
The pitch is 2.00mm (0.079") with a row spacing of 2.00mm.
The current rating is 3.2A per contact with 2 pins powered.
The voltage rating is 281 VAC when mated with SQW series and 250 VAC when mated with SQT series.
It is a surface mount connector with solder termination.
The operating temperature range is -55°C to 125°C.
Contacts are phosphor bronze with a tin finish of 10.0µin (0.25µm) over 50µ" nickel.
