| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

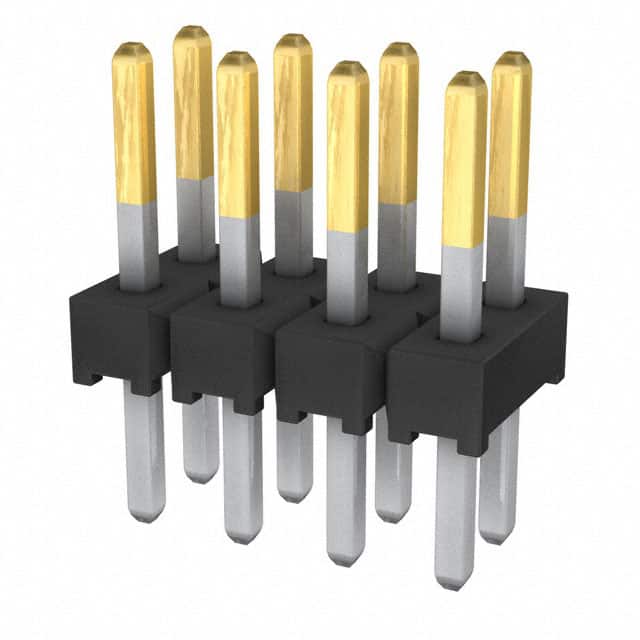

The Samtec TMM-104-03-L-D is a low profile through hole header from the TMM series, offering 8 positions in a 2-row configuration with a 2.00mm pitch. It features an unshrouded design with male square pins, suitable for board-to-board or cable connections.
This header is constructed with a black liquid crystal polymer (LCP) insulator and phosphor bronze contacts. The plating is 10 µ" gold on the post and matte tin on the tail, providing reliable signal integrity. Electrical ratings include 3.2A per row (2 pins powered) and 281 VAC when mated with SQW connectors or 250 VAC with SQT connectors.
Operating temperature range is -55°C to +105°C with tin plating. The part is lead-free solderable and mates with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, and MMS board connectors, as well as TCSD cable connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 50+ | $0.81 | $0.81 |
| 100+ | $0.65 | $0.65 |
| 500+ | $0.58 | $0.58 |
| 1,000+ | $0.47 | $0.47 |
| 2,000+ | $0.40 | $0.40 |
| 5,000+ | $0.31 | $0.31 |
| 10,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a 2-row configuration.
2.00mm (0.079")
3.2A per row (2 pins powered).
281 VAC when mated with SQW connectors; 250 VAC when mated with SQT connectors.
Through hole with solder termination.
10 µ" gold on the post, matte tin on the tail.
-55°C to +105°C with tin plating; could be up to +125°C with gold plating, but this part has tin on tail.
