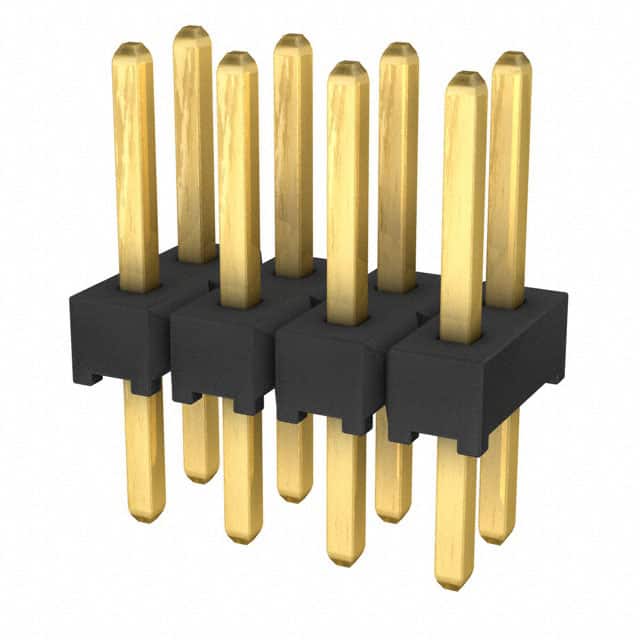

TMM-104-03-G-D 8 position, 2 row, 2mm pitch through hole header with gold plated phosphor bronze contacts. Rated for 3.2A per row and 281 VAC when mated with SQW.
Mfr Part #:

TMM-104-03-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
8 position, 2 row, 2mm pitch through hole header with gold plated phosphor bronze contacts. Rated for 3.2A per row and 281 VAC when mated with SQW.
✓ Total Stock: 16 pcs
$ Price Range: $0.45 - $1.25

TMM-104-03-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-104-03-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TMM-104-03-G-D Description

Short technical summary and product information.

The Samtec TMM-104-03-G-D is an 8-position, 2-row through-hole header with a 2.00mm pitch. It features male pin contacts made of phosphor bronze with gold plating (0.51µm) on the mating interface. The insulator is black liquid crystal polymer (LCP) rated for operating temperatures from -55°C to +125°C with gold plating.



This unshrouded header is designed for board-to-board or cable applications. It mates with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, and MMS series receptacles, as well as TCSD cable assemblies. The push-pull fastening type allows easy mating and unmating.



Electrical ratings include 3.2A per row (2 pins powered) and voltage ratings of 281 VAC when mated with SQW or 250 VAC when mated with SQT. The overall contact length is 8.20mm with a contact length of 4.00mm. The through-hole termination with solder provides reliable mechanical and electrical connection.

TMM-104-03-G-D Quick Information

Product Type: Header, Male Pins
Series: TMM
Canonical Name: Samtec TMM-104-03-G-D 8 Position 2mm Pitch Through Hole Header
Subcategory: Male Pins

TMM-104-03-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMM-104-03-G-D Estimated Pricing

Qty Low High
1+ $1.25 $1.25
50+ $1.02 $1.02
100+ $0.82 $0.82
500+ $0.77 $0.77
1,000+ $0.67 $0.67
2,000+ $0.59 $0.59
5,000+ $0.51 $0.51
10,000+ $0.45 $0.45

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-104-03-G-D Features

  • 8 positions in 2 rows at 2mm pitch.
  • Gold plated phosphor bronze contacts.
  • Through-hole mounting with solder termination.
  • Rated for 3.2A per row.
  • Operating temperature -55°C to +125°C.

TMM-104-03-G-D Applications

  • Used in board-to-board interconnects.
  • Suitable for cable-to-board connections.
  • Ideal for industrial control systems.
  • Common in test and measurement equipment.

TMM-104-03-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8 positions in 2 rows.

What is the pitch?

2.00mm.

What is the current rating?

3.2A per row (2 pins powered).

What is the voltage rating?

281 VAC when mated with SQW, 250 VAC when mated with SQT.

What is the mounting type?

Through hole with solder termination.

What is the contact finish?

Gold plating, 0.51µm thickness.

What is the operating temperature range?

-55°C to +125°C with gold plating.
