| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,025 pcs
|
5025 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

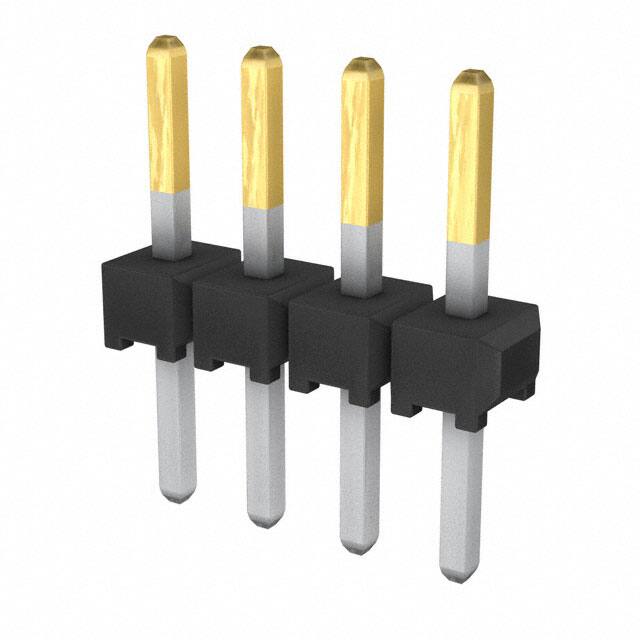

The Samtec Inc. TMM-104-02-L-S is a 4-position, 1-row header designed for board-to-board or cable applications. It utilizes a 2.00 mm (0.0787") pitch and a through-hole mounting type.
The header has a contact material of Phosphor Bronze with a tin finish and a contact finish thickness of 10.0µin (0.25µm). The insulation material is Black Liquid Crystal Polymer (LCP). It offers a current rating of 3.2A per contact and an operating temperature range of -55°C to +125°C.
This unshrouded header has a square contact shape and a male pin contact type. The termination method is solder. The insulation height is 1.50mm (0.059"), and the contact length is 3.71mm (0.146"). The overall contact length is 8.20mm (0.323").
Additional specifications include a voltage rating of 281 VAC mated with SQW and 250 VAC mated with SQT. The header is lead-free solderable and has a push-pull fastening type. It is suitable for applications requiring high mating cycles and extended life with 30µ" gold plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TMM-104-02-L-S header has 4 positions.
The pitch of the TMM-104-02-L-S connector is 2.00mm (0.079").
The current rating for the TMM-104-02-L-S header is 3.2A per contact.
The operating temperature range for the TMM-104-02-L-S header is -55°C to +125°C.
The TMM-104-02-L-S uses a through-hole mounting type.
The voltage rating when mated with SQW for the TMM-104-02-L-S is 281 VAC.
The voltage rating when mated with SQT for the TMM-104-02-L-S is 250 VAC.
