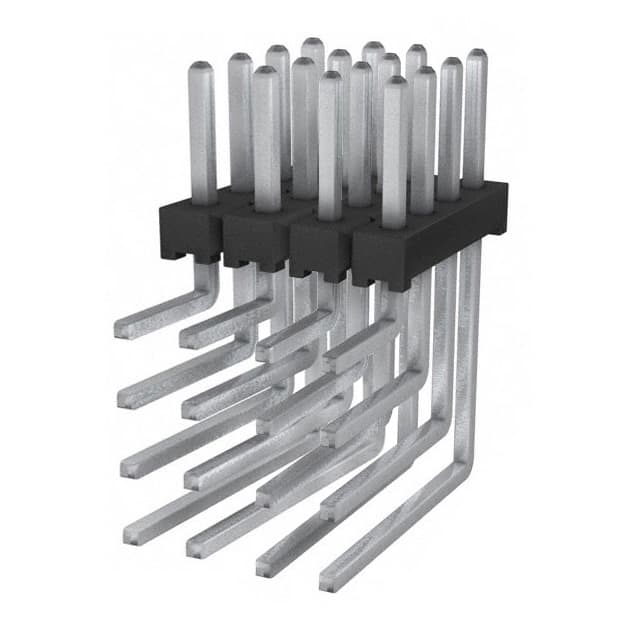

TMM-104-01-T-Q-RA The Samtec Inc. TMM-104-01-T-Q-RA is a 4-row, 16-position male pin header with a 2.00mm pitch. It features through-hole, right-angle mounting and a current rating of 3.2A per contact.
Mfr Part #:

TMM-104-01-T-Q-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. TMM-104-01-T-Q-RA is a 4-row, 16-position male pin header with a 2.00mm pitch. It features through-hole, right-angle mounting and a current rating of 3.2A per contact.
✓ Total Stock: 110 pcs
$ Price Range: $0.77

TMM-104-01-T-Q-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request 1518+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-104-01-T-Q-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Plating
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TMM-104-01-T-Q-RA Description

Short technical summary and product information.

The Samtec Inc. TMM-104-01-T-Q-RA is a low-profile header strip from the TMM series, designed for board-to-board or cable applications. It offers a 2.00 mm (0.0787") pitch and is available in configurations up to 4 rows and 200 pins.



This specific header has 4 rows and 16 positions, with a through-hole, right-angle mounting type. The contact material is Phosphor Bronze with a Tin finish, and it has a current rating of 3.2A per contact. The insulation material is Black Liquid Crystal Polymer (LCP).



The operating temperature range is -55°C to +105°C. The connector type is a male pin header, unshrouded, with a push-pull fastening type. It supports high-speed performance up to 8 Gbps.



Additional plating options and row configurations are available, and it is RoHS3 compliant and Lead-Free solderable. The MSL is rated as 1 Unlimited.

TMM-104-01-T-Q-RA Quick Information

Product Type: Header
Series: TMM
Canonical Name: Samtec Inc. TMM Series 4-Row, 16-Position Through Hole, Right Angle Header, 2.00mm Pitch
Subcategory: Male Pin Header

TMM-104-01-T-Q-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TMM-104-01-T-Q-RA Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-104-01-T-Q-RA Features

  • 4-row, 16-position header configuration.
  • 2.00mm pitch for compact designs.
  • Through-hole, right-angle mounting.
  • 3.2A current rating per contact.
  • Supports up to 8 Gbps high-speed performance.

TMM-104-01-T-Q-RA Applications

  • Ideal for board-to-board connections.
  • Suitable for cable assembly applications.
  • Used in high-density interconnect systems.
  • Designed for high-speed data transmission.

TMM-104-01-T-Q-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TMM-104-01-T-Q-RA header?

The pitch of the TMM-104-01-T-Q-RA header is 2.00mm (0.079").

How many positions are available on the TMM-104-01-T-Q-RA?

The TMM-104-01-T-Q-RA has 16 positions loaded.

What is the current rating for the TMM-104-01-T-Q-RA?

The current rating for the TMM-104-01-T-Q-RA is 3.2A per contact.

What is the operating temperature range of this header?

The operating temperature range is -55°C to +105°C.

What type of mounting does the TMM-104-01-T-Q-RA support?

It supports Through Hole, Right Angle mounting.

What is the contact material and finish?

The contact material is Phosphor Bronze with a Tin finish.

Does this header support high-speed data rates?

Yes, it supports up to 8 Gbps high-speed performance.
