TMM-104-01-L-D-SM Samtec TMM-104-01-L-D-SM is an 8 position, 2.00mm pitch, double row surface mount male pin header. It features gold on post and matte tin on tail contacts, rated for 3.2A per contact.
Mfr Part #:

TMM-104-01-L-D-SM

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TMM-104-01-L-D-SM is an 8 position, 2.00mm pitch, double row surface mount male pin header. It features gold on post and matte tin on tail contacts, rated for 3.2A per contact.
✓ Total Stock: 43 pcs
$ Price Range: $0.31 - $1.18

TMM-104-01-L-D-SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
43 pcs
On Request
43 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-104-01-L-D-SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TMM-104-01-L-D-SM Description

Short technical summary and product information.

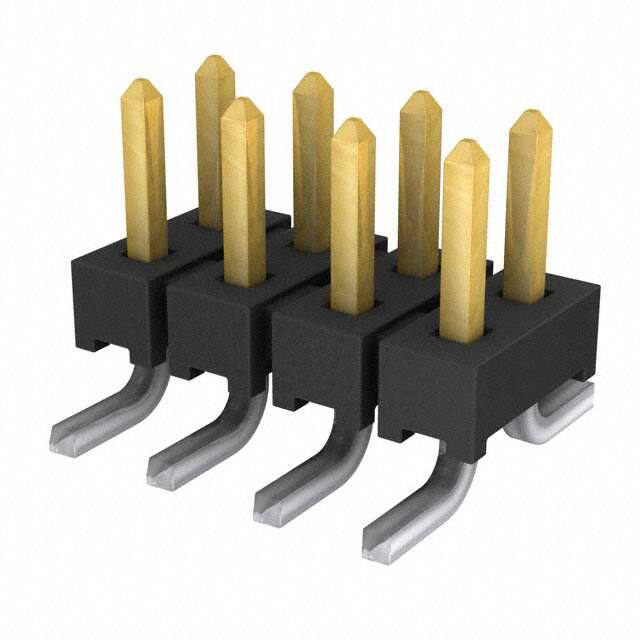

The Samtec TMM-104-01-L-D-SM is a 2.00mm pitch, double row, surface mount male pin header from the TMM series. It has 8 positions (2 rows of 4) with a 3.20mm contact length and an unshrouded push-pull design. The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.



Electrical ratings include 3.2A per contact (2 pins powered) and a voltage rating of 281 VAC when mated with SQW or 250 VAC when mated with SQT. The operating temperature range is -55°C to +125°C with gold plating. Contacts are phosphor bronze with 10µ" (0.25µm) gold on the post and matte tin on the tail.



This header is designed for board-to-board or cable applications and mates with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, MMS, and TCSD series. It is lead-free solderable and has a maximum SMT lead coplanarity of 0.15mm.

TMM-104-01-L-D-SM Quick Information

Product Type: Header, Male Pins
Series: TMM
Canonical Name: Samtec TMM-104-01-L-D-SM 8 Position 2.00mm Pitch Double Row Surface Mount Male Pin Header
Subcategory: Unshrouded

TMM-104-01-L-D-SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TMM-104-01-L-D-SM Estimated Pricing

Qty Low High
1+ $1.18 $1.18
50+ $0.97 $0.97
73+ $0.69 $0.69
1,022+ $0.57 $0.57
2,044+ $0.48 $0.48
5,037+ $0.39 $0.39
10,001+ $0.32 $0.32
25,039+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-104-01-L-D-SM Features

  • 8 position 2.00mm pitch double row header.
  • Surface mount with 3.20mm contact length.
  • Rated 3.2A per contact at 2 pins powered.
  • Gold on post, matte tin on tail contacts.
  • Operating temperature -55°C to +125°C.

TMM-104-01-L-D-SM Applications

  • Board-to-board interconnects in compact designs.
  • Cable-to-board connections with TCSD series.
  • Industrial control and automation equipment.
  • Test and measurement instrumentation.

TMM-104-01-L-D-SM FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TMM-104-01-L-D-SM have?

It has 8 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 2.00mm (0.079 inches).

What is the current rating per contact?

3.2A per contact when 2 pins are powered.

What is the voltage rating?

281 VAC when mated with SQW, or 250 VAC when mated with SQT.

What is the mounting type?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to +125°C with gold plating.

What contact finish does this part have?

10µ" (0.25µm) gold on the post and matte tin on the tail, over 50µ" nickel underplating.
