| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

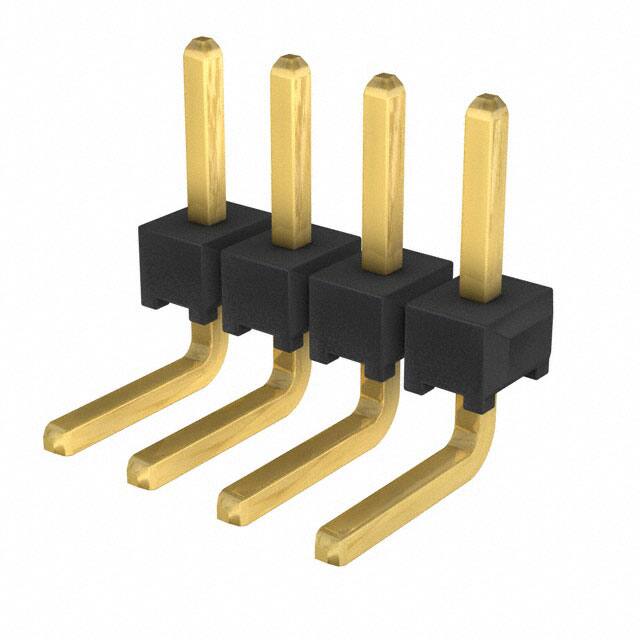

The TMM-104-01-G-S-RA is a 4-position, single-row, unshrouded header from Samtec's TMM series. It features a 2.00mm pitch and right-angle through-hole mounting, making it suitable for board-to-board or cable connections. The contacts are made of phosphor bronze with 20µin gold plating, ensuring reliable electrical performance. The insulator is black liquid crystal polymer (LCP) with a height of 2.00mm. This header is rated for 3.2A per contact and operates over -55°C to +125°C. It is lead-free solderable and RoHS compliant (unverified). Typical applications include signal interconnects in industrial, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 50+ | $0.74 | $0.74 |
| 100+ | $0.64 | $0.64 |
| 500+ | $0.55 | $0.55 |
| 1,000+ | $0.42 | $0.42 |
| 2,000+ | $0.36 | $0.36 |
| 5,000+ | $0.30 | $0.30 |
| 10,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions, all loaded.
2.00mm (0.079 inches).
3.2A per contact.
281 VAC when mated with SQW, 250 VAC when mated with SQT.
Through hole, right angle.
-55°C to +125°C.
Gold, 20.0µin (0.51µm) over nickel.
