Mfr Part #:

TMM-103-04-L-D

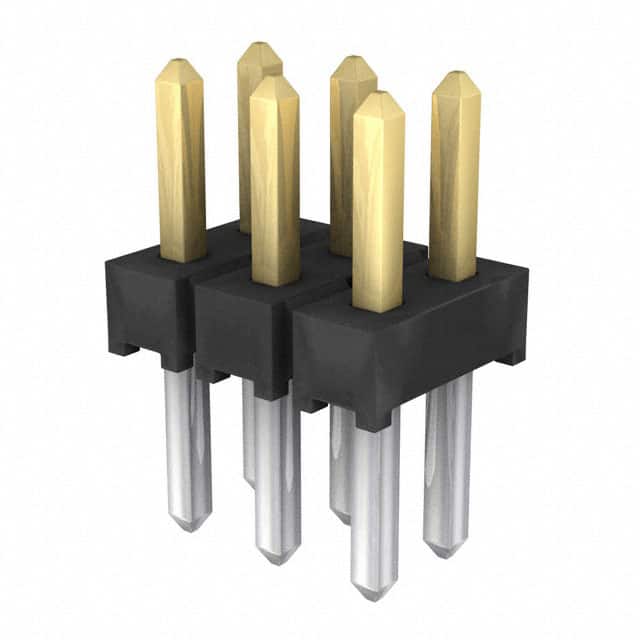

The TMM-103-04-L-D is a 6-position, 2-row, 2.00mm pitch, through-hole male pin header from Samtec. It features a low profile design with 10µin gold on post and matte tin on tail.

✓ Total Stock: 68 pcs

$ Price Range: $0.19 - $0.74

TMM-103-04-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	68 pcs On Request	68 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TMM-103-04-L-D Description

Short technical summary and product information.

The TMM-103-04-L-D is a 6-position, 2-row pin header from Samtec's TMM series. It features a 2.00mm pitch and through-hole termination, making it suitable for board-to-board or cable applications. The connector is unshrouded with a push-pull fastening type.

Key specifications include a current rating of 3.2A per pin (with 2 pins powered per row) and a voltage rating of 281 VAC when mated with SQW series. The contact material is phosphor bronze with a finish of 10 µ" gold on the mating post and matte tin on the tail. The insulator is black liquid crystal polymer (LCP) with a height of 1.50mm.

The low profile design with a mating post length of 1.90mm and overall contact length of 5.69mm allows for compact stacking. The operating temperature range is -55°C to +105°C with tin plating, and -55°C to +125°C with gold plating.

This header is ideal for applications requiring a reliable, high-density interconnect in a small form factor.

TMM-103-04-L-D Quick Information

Product Type: Pin Header

Series: TMM

Canonical Name: Header, Male Pin, 6 Positions, 2 Rows, 2.00mm Pitch, Through Hole, Unshrouded

Subcategory: Low Profile Pin Header

TMM-103-04-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1

REACH Status: REACH Unaffected

TMM-103-04-L-D Estimated Pricing

Qty	Low	High
1+	$0.74	$0.74
50+	$0.64	$0.64
100+	$0.52	$0.52
500+	$0.43	$0.43
1,000+	$0.36	$0.36
2,000+	$0.31	$0.31
5,000+	$0.27	$0.27
10,000+	$0.19	$0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-103-04-L-D Features

6-position, 2-row pin header.
2.00mm pitch for compact designs.
Through-hole termination for secure mounting.
10µin gold on post for reliable contact.
Rated for 3.2A per pin.

TMM-103-04-L-D Applications

Board-to-board stacking applications.
Cable-to-board interconnect solutions.
Low profile design for space-constrained layouts.

TMM-103-04-L-D FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

6 positions.

What is the pitch?

2.00 mm.

What is the current rating?

3.2 A per pin (with 2 pins powered per row).

What is the voltage rating?

281 VAC when mated with SQW series.

What is the mounting type?

Through Hole.

What is the contact finish?

10 µ" Gold on post, Matte Tin on tail (overall Tin).

What is the insulation material?

Liquid Crystal Polymer (LCP), black.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0 µin (0.25 µm)
Contact Length	1.90 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	1.50 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.0 mm
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	5.69 mm
Pitch	2.00 mm
Row Spacing	2.00 mm
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Voltage Rating	281 VAC
