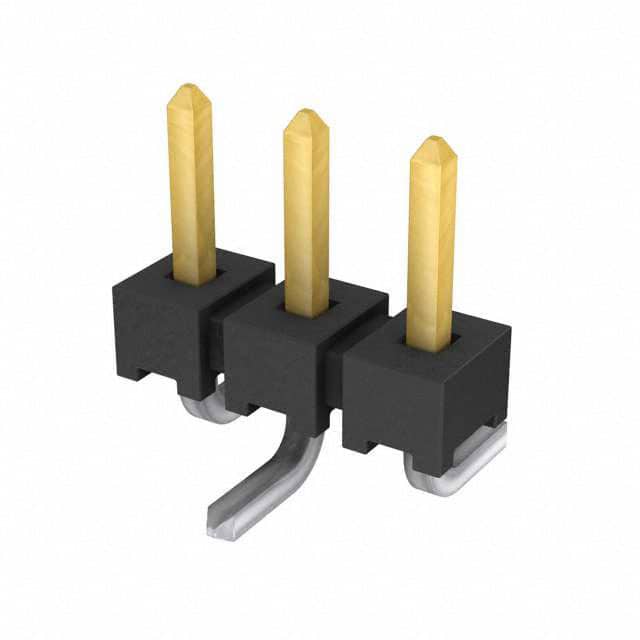

TMM-103-01-L-S-SM-P-TR Surface mount unshrouded male pin header from Samtec's TMM series, 3 positions, 1 row, 2.00mm pitch, with tin-plated phosphor bronze contacts. Rated for 3.2A per contact and 281 VAC (mated with SQW).
Mfr Part #:

TMM-103-01-L-S-SM-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Surface mount unshrouded male pin header from Samtec's TMM series, 3 positions, 1 row, 2.00mm pitch, with tin-plated phosphor bronze contacts. Rated for 3.2A per contact and 281 VAC (mated with SQW).
✓ Total Stock: 125 pcs
$ Price Range: $0.43 - $0.77

TMM-103-01-L-S-SM-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMM-103-01-L-S-SM-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TMM-103-01-L-S-SM-P-TR Description

Short technical summary and product information.

The TMM-103-01-L-S-SM-P-TR is a low profile, unshrouded male pin header from Samtec's TMM series. It features 3 positions in a single row with a 2.00mm (0.079") pitch, making it suitable for compact board-to-board or cable connections.



This surface mount header uses phosphor bronze contacts with a tin finish (10µin gold on post, tin on tail per the part number plating option 'L' which indicates 10µ" gold on post, matte tin on tail). The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. It includes a pick-and-place pad for automated assembly.



Electrical ratings include 3.2A current per contact (with 2 pins powered) and a voltage rating of 281 VAC when mated with Samtec's SQW series. The operating temperature range is -55°C to +125°C (with gold plating).



Packaging is tape and reel with a standard quantity of 400 pieces. The SMT lead coplanarity is 0.15mm maximum. The connector is lead-free solderable.

TMM-103-01-L-S-SM-P-TR Quick Information

Product Type: Header, Male Pins
Series: TMM
Canonical Name: TMM-103-01-L-S-SM-P-TR Unshrouded Male Pin Header, 3 Positions, 1 Row, 2.00mm Pitch, Surface Mount, Solder Termination, Pick and Place, Tape & Reel
Subcategory: Unshrouded Male Pin Header

TMM-103-01-L-S-SM-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

TMM-103-01-L-S-SM-P-TR Estimated Pricing

Qty Low High
1+ $0.77 $0.77
50+ $0.76 $0.76
100+ $0.66 $0.66
400+ $0.64 $0.64
800+ $0.58 $0.58
2,000+ $0.48 $0.48
4,800+ $0.44 $0.44
10,000+ $0.43 $0.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-103-01-L-S-SM-P-TR Features

  • 3 positions in single row configuration.
  • 2.00mm pitch for compact designs.
  • Surface mount with pick-and-place pad.
  • Rated for 3.2A per contact.
  • Tin-plated phosphor bronze contacts.

TMM-103-01-L-S-SM-P-TR Applications

  • Low profile board-to-board interconnect.
  • Cable-to-board connections with TCSD series.
  • Automated assembly with pick-and-place compatibility.
  • Ideal for space-constrained electronics.

TMM-103-01-L-S-SM-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

3 positions.

What is the pitch?

2.00mm (0.079").

What is the current rating?

3.2A per contact (with 2 pins powered).

What is the voltage rating?

281 VAC when mated with Samtec SQW series.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material?

Phosphor bronze.
