Mfr Part #:

TMM-102-01-TM-S-SM

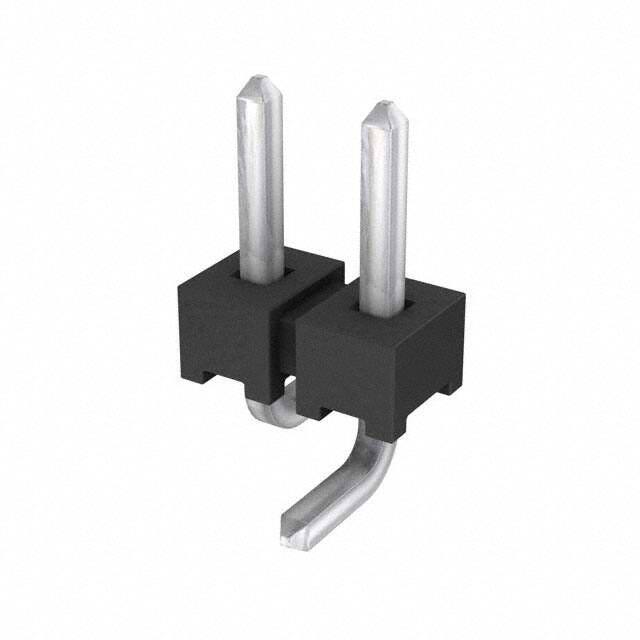

Samtec TMM-102-01-TM-S-SM is a 2-position, 1-row, unshrouded pin header with 2.00mm pitch, surface mount termination, and tin-plated phosphor bronze contacts.

✓ Total Stock: 489 pcs

$ Price Range: $0.17 - $0.29

TMM-102-01-TM-S-SM Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	489 pcs On Request	489 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

TMM-102-01-TM-S-SM Description

Short technical summary and product information.

The Samtec TMM-102-01-TM-S-SM is a low-profile pin header from the TMM series, designed for board-to-board or cable applications. It features 2 positions in a single row with a 2.00mm (0.079") pitch, making it suitable for space-constrained designs. The header uses unshrouded square pins with tin plating on phosphor bronze contacts, providing a current rating of 3.2A per contact and a voltage rating of 250VAC when mated with SQT series sockets. The insulator is black Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0. The header is surface mount with solder termination and supports lead-free soldering. It operates over a temperature range of -55°C to 105°C with tin plating. The push-pull fastening type allows easy mating and unmating. This part is ideal for low-profile interconnections in various electronic systems.

TMM-102-01-TM-S-SM Quick Information

Product Type: Pin Header

Series: TMM

Canonical Name: Samtec TMM-102-01-TM-S-SM 2 Position 2mm Pitch Single Row Unshrouded Header, Surface Mount, Tin Plating

Subcategory: Unshrouded Header

TMM-102-01-TM-S-SM Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

Lead Free: Yes

TMM-102-01-TM-S-SM Estimated Pricing

Qty	Low	High
1+	$0.29	$0.29
50+	$0.24	$0.24
100+	$0.21	$0.21
500+	$0.19	$0.19
1,000+	$0.18	$0.18
2,000+	$0.18	$0.18
5,000+	$0.17	$0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-102-01-TM-S-SM Features

2-position single row 2.00mm pitch header.
Surface mount termination for SMT assembly.
Tin-plated phosphor bronze contacts.
Rated 3.2A per contact and 250VAC.
Operating temperature range -55°C to 105°C.

TMM-102-01-TM-S-SM Applications

Board-to-board interconnections in compact devices.
Cable-to-board connections with compatible sockets.
Low-profile PCB stacking applications.
Industrial control and automation systems.
Consumer electronics requiring reliable connections.

TMM-102-01-TM-S-SM FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does TMM-102-01-TM-S-SM have?

2 positions in 1 row.

What is the pitch of TMM-102-01-TM-S-SM?

2.00mm (0.079").

What is the current rating of TMM-102-01-TM-S-SM?

3.2A per contact (2 pins powered).

What is the voltage rating of TMM-102-01-TM-S-SM?

250VAC when mated with SQT series sockets. Also 281VAC when mated with SQW.

What is the mounting type of TMM-102-01-TM-S-SM?

Surface mount (SMT).

What is the contact finish of TMM-102-01-TM-S-SM?

Tin plating on the mating contact.

What is the operating temperature range of TMM-102-01-TM-S-SM?

-55°C to 105°C with tin plating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	3.20mm (0.126")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2A per Contact
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	1.50mm (0.059")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.0 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 105°C
Pitch	2.00mm (0.079")
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
