| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

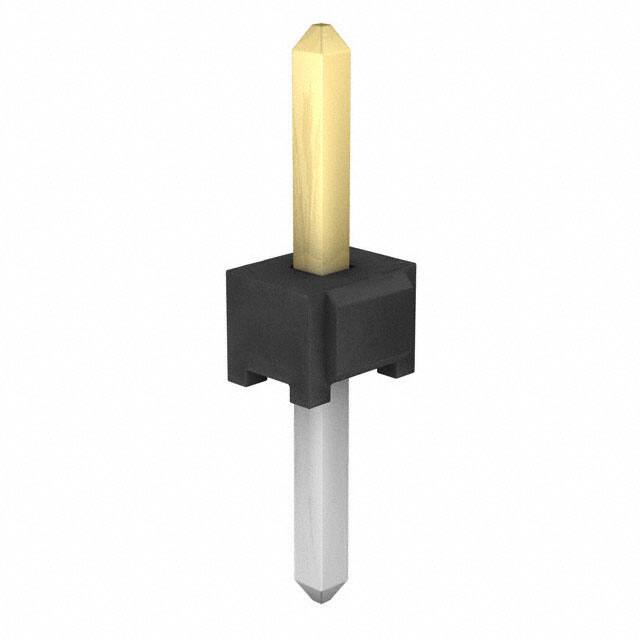

The Samtec Inc. TMM-101-03-F-S is a low-profile pin header from the TMM series, designed for board-to-board or cable applications. This unshrouded header features a 2.00 mm (0.0787") pitch and a single row configuration with one position.
Key specifications include a contact material of Phosphor Bronze with a Gold Flash/Matte Tin finish, and an insulation material of Black Liquid Crystal Polymer (LCP). It has a current rating of 3.2A per contact and an operating temperature range of -55°C to +125°C. The termination type is Solder, and it supports a Push-Pull fastening mechanism.
This header is designed for Through Hole mounting and offers flexibility with options for different plating and row configurations. It supports high-speed data rates up to 8 Gbps, making it suitable for various interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the TMM-101-03-F-S header is 2.00mm (0.0787").
The TMM-101-03-F-S has 1 position and 1 row.
The current rating for the TMM-101-03-F-S header is 3.2A per contact.
The operating temperature range is -55°C to +125°C.
The TMM-101-03-F-S header uses Through Hole mounting.
Contact finish options include Gold flash on post/Matte Tin on tail, 10 µ" Gold on post/Matte Tin on tail, 30 µ" Gold on post/Matte Tin on tail, and Matte Tin.
The TMM-101-03-F-S supports up to 8 Gbps performance.
