| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

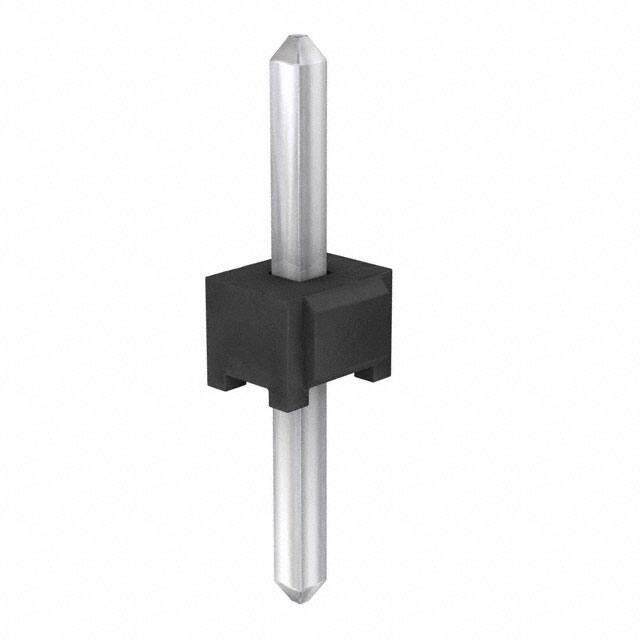

The Samtec TMM-101-01-T-S is a low-profile pin header from the TMM series, designed for board-to-board or cable applications. This connector has 1 position in a single row with a 2.00mm pitch, making it suitable for compact designs where space is at a premium.
Key specifications include a through-hole mounting type with solder termination, an unshrouded push-pull fastening design, and a square contact shape made from phosphor bronze with a matte tin finish. The insulator is black liquid crystal polymer (LCP), and the overall contact length is 0.323 inches (8.20 mm).
Electrically, the TMM-101-01-T-S is rated for 3.2A per contact and has a voltage rating of 281 VAC when mated with a SQW series connector. It operates over a temperature range of -55°C to +105°C. The part is supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
| 50+ | $0.11 | $0.11 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.06 | $0.06 |
| 2,000+ | $0.05 | $0.05 |
| 5,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 1 position in a single row.
The pitch is 2.00 mm.
The current rating is 3.2 A per contact.
The voltage rating is 281 VAC when mated with a SQW series connector.
It is a through-hole mounting connector.
The operating temperature range is -55°C to +105°C.
The contact finish is matte tin.
