| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

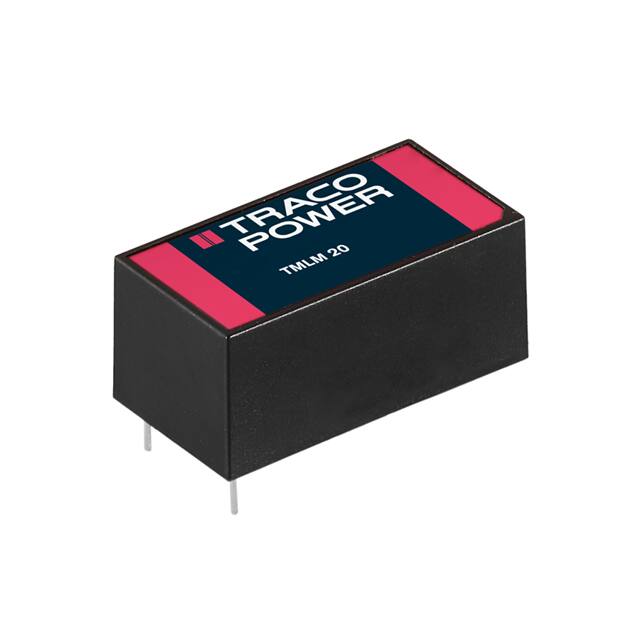

The Traco Power TMLM 20105 is an 18W AC-DC power module designed for ITE (Commercial) applications. It provides a single 5V output with a maximum current of 3.6A.
Key electrical specifications include a universal input voltage range of 90-264 VAC or 120-370 VDC, an efficiency of 78%, and line and load regulation of 0.5% and ±1% respectively. The operating temperature range is -25°C to 60°C with derating.
This module features a compact size with dimensions of 52.4mm x 27.2mm x 23.5mm. It is designed for through-hole mounting and comes in a 4-DIP Module package. The TMLM 20105 is approved by CE and cURus agencies.
90-264 VAC or 120-370 VDC.
4-DIP Module, through-hole mounting.
-25°C to 60°C with derating.
5V at 3.6A.
78%.
52.4mm x 27.2mm x 23.5mm (L x W x H).
Line regulation 0.5%, load regulation ±1%.
