| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

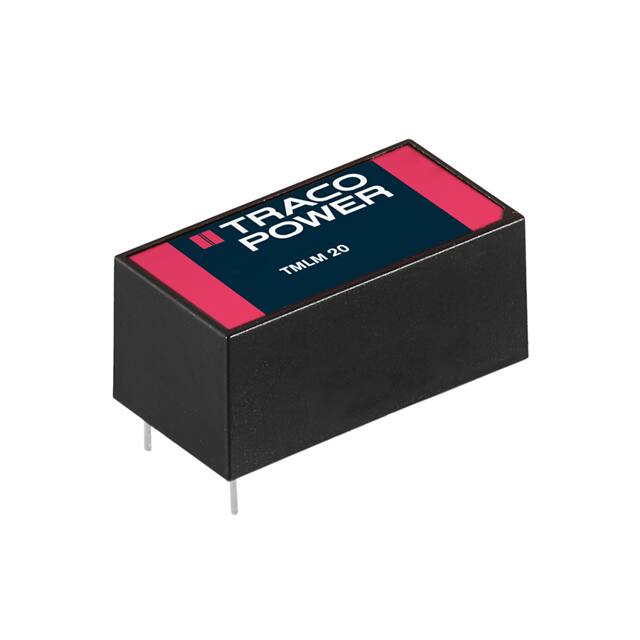

This Traco Power TMLM 20103 is an AC/DC converter designed for ITE (Commercial) applications. It provides a 12W output power with a single output channel, delivering 3.6A at the specified voltage.
The converter accepts a wide input voltage range of 90 to 264 VAC or 120 to 370 VDC, ensuring versatility in different power environments. It operates with an efficiency of 74% and features universal input capabilities.
Designed for easy integration, the TMLM 20103 has a 4-DIP Module package and is intended for Through Hole mounting. Its dimensions are 52.4mm in length, 27.2mm in width, and 23.5mm in height. The operating temperature range is from -25°C to 60°C, with derating applied.
Compliance certifications include CE and cURus, indicating adherence to safety and regulatory standards. The RoHS status is RoHS3 Compliant, and it is rated MSL 1 Unlimited.
90-264 VAC or 120-370 VDC.
The converter provides a single 3.3V output at 3.6A (12W).
-25°C to 60°C with derating.
4-DIP Module with through-hole mounting.
74%.
52.4mm x 27.2mm x 23.5mm.
