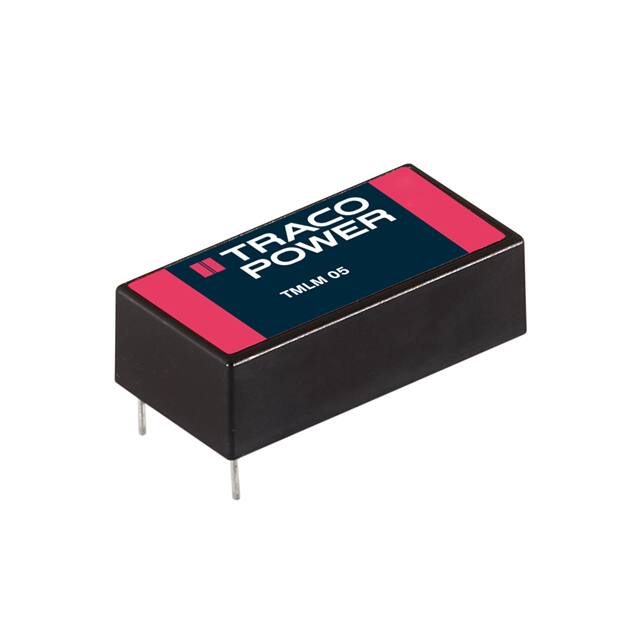

The Traco Power TMLM 05115 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output with a power rating of 5W and an output current of 333mA at 15V.
This converter operates with a universal input voltage range of 90 to 264 VAC or 120 to 370 VDC, offering flexibility in power source selection. It boasts an efficiency of 75% and includes features such as universal input. The operating temperature range is -25°C to 60°C with derating.
Mechanically, the TMLM 05115 has dimensions of 50.8mm x 25.4mm x 15.2mm. It is designed for through-hole mounting and comes in a 4-DIP module package. The unit is approved by CE and cURus agencies, indicating compliance with relevant safety standards.
The TMLM 05115 has a power output of 5W.
The input voltage range is 90 to 264 VAC or 120 to 370 VDC.
The TMLM 05115 uses through hole mounting.
The operating temperature range is -25°C to 60°C with derating.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
