| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Protection | |
| SVHC Present | |
| Type | |
| Voltage | |
| Weight | |
| Width |

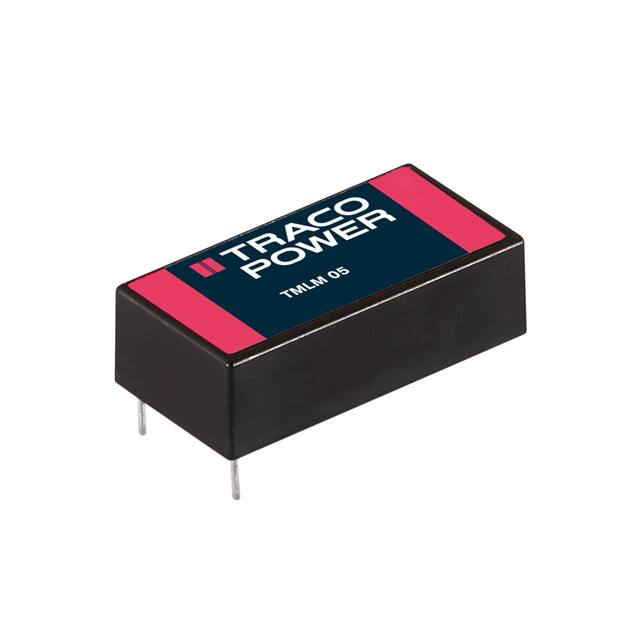

The Traco Power TMLM 05112 is a 5W AC/DC power module with a single 12VDC output, designed for high power density applications. It offers a universal input voltage range of 90-264 VAC or 120-370 VDC and operates at an efficiency of up to 75%.
This module is suitable for space-critical applications and features short-circuit and overload protection. It is designed for through-hole mounting and comes in a 4-DIP module package. The operating temperature range is -25°C to 60°C.
Ideal for industrial, commercial, and power management applications, the TMLM 05112 meets international safety approvals and EMI compliance standards, including EN 55022 class B and FCC part 15 level B.
The output power of the TMLM 05112 is 5 Watts.
The TMLM 05112 has a single output voltage of 12 VDC.
The input voltage range for the TMLM 05112 is 90-264 VAC or 120-370 VDC.
The TMLM 05112 operates from -25°C to 60°C, with derating above 50°C.
The TMLM 05112 is in a 4-DIP Module package.
The TMLM 05112 is designed for Through Hole mounting.
