| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
779 pcs
|
779 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
744 pcs
|
744 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
684 pcs
|
684 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

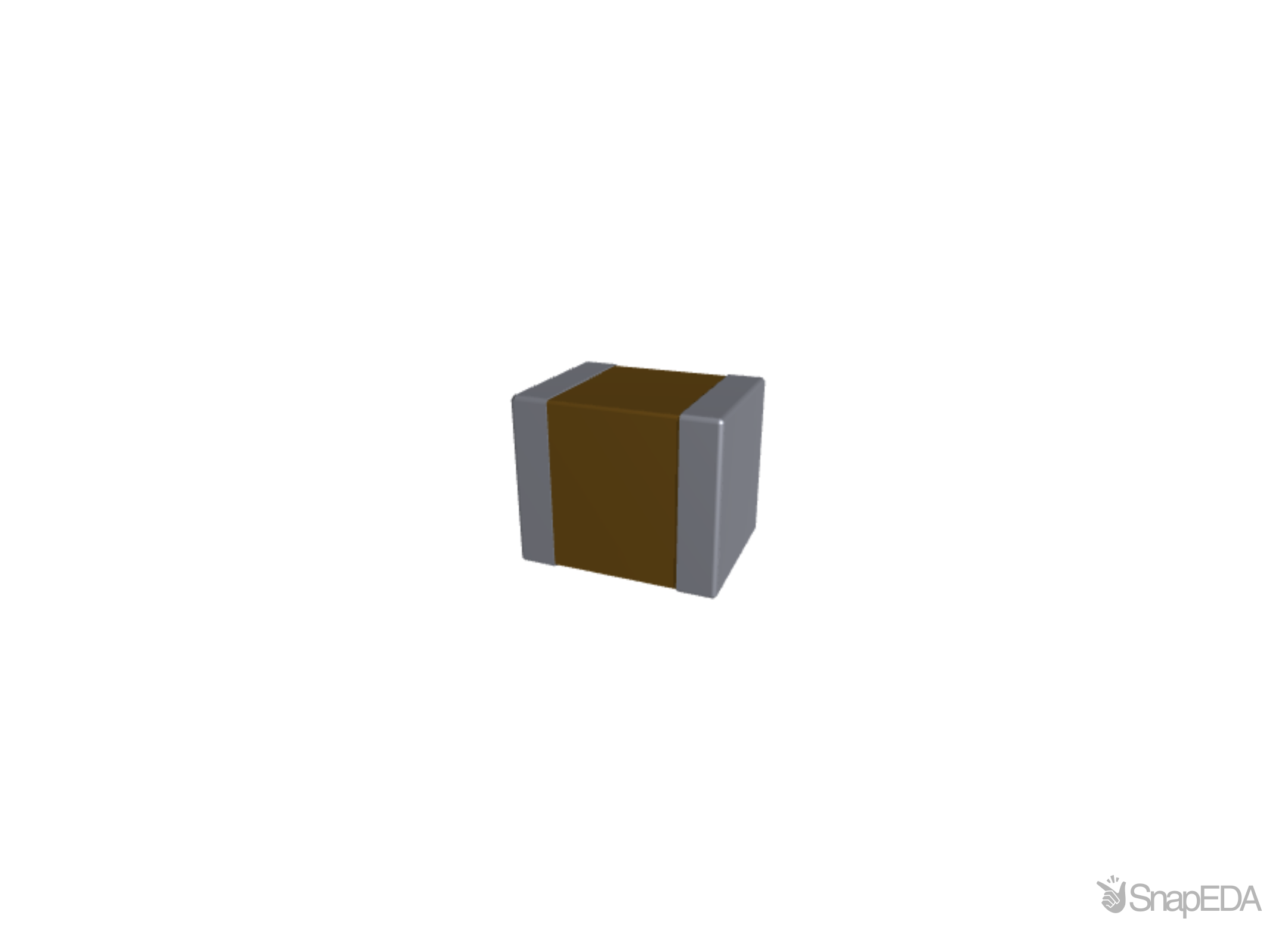

The Taiyo Yuden TMK325B7226KMHP is a multilayer ceramic capacitor (MLCC) with a capacitance of 22 µF and a tolerance of ±10%. It is rated for 25V DC and features an X7R temperature coefficient, ensuring stable performance over -55°C to +125°C. The capacitor has a maximum dissipation factor of 10% and a minimum insulation resistance of 100 MΩ·µF. It is designed for surface mount assembly in a 1210 (3225 Metric) case size with dimensions 3.2 mm x 2.5 mm and a maximum thickness of 2.7 mm. The component is RoHS3 compliant, REACH unaffected, halogen free, and has an MSL of 1 (unlimited). It is suitable for general purpose applications requiring high capacitance in a compact footprint. The part is AEC-Q200 qualified, making it suitable for automotive applications. Standard packaging is tape and reel with 1000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 10+ | $0.48 | $0.48 |
| 100+ | $0.43 | $0.43 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.34 | $0.34 |
| 2,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 µF.
25V.
X7R.
±10%.
1210 (3225 Metric).
-55°C to +125°C.
Yes, RoHS3 compliant.
