| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
415 pcs
|
415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

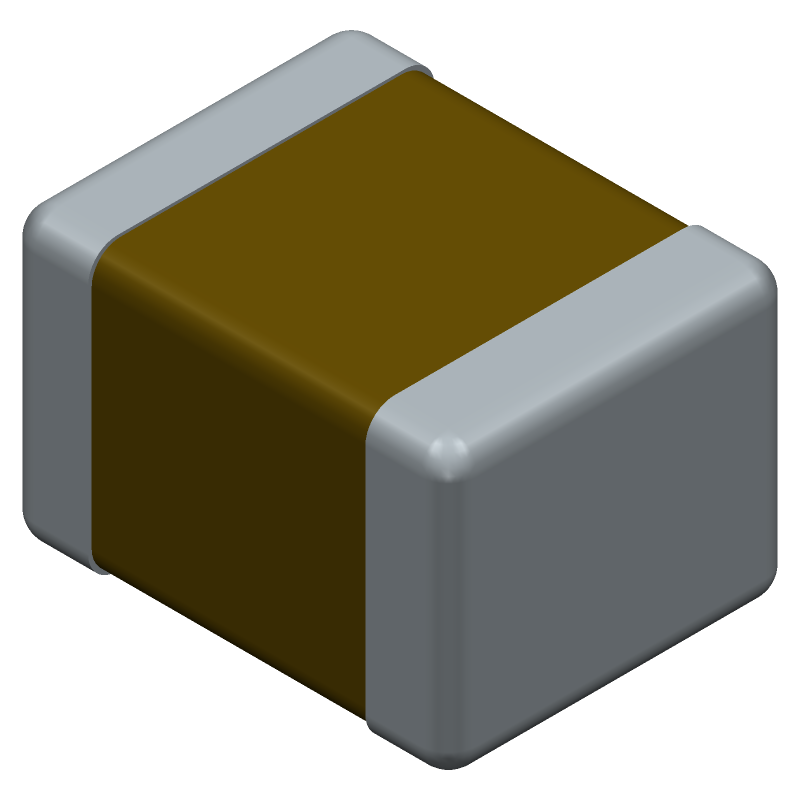

The Taiyo Yuden TMK325ABJ476MM-P is a surface-mount multilayer ceramic capacitor (MLCC) with a capacitance of 47 µF and a rated voltage of 25V DC. It uses an X5R temperature coefficient, offering a capacitance change of ±15% over the operating temperature range of -55°C to +85°C. The component is housed in a standard 1210 (EIA) / 3225 (JIS) case size with dimensions of 3.20mm length, 2.50mm width, and a maximum thickness of 2.80mm. It features a maximum dissipation factor of 10% and a minimum insulation resistance of 100 MΩ·µF. The capacitor is supplied in embossed tape packaging with a standard quantity of 1000 pieces per reel. It is compliant with RoHS3, REACH, and is halogen free, with an MSL rating of 1 (unlimited). This MLCC is suitable for general-purpose applications requiring high capacitance in a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
| 10+ | $0.59 | $0.59 |
| 100+ | $0.54 | $0.54 |
| 500+ | $0.46 | $0.46 |
| 1,000+ | $0.43 | $0.43 |
| 2,000+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 47 µF with a tolerance of ±20%.
The rated DC voltage is 25V.
The temperature coefficient is X5R, with an operating temperature range of -55°C to +85°C.
The case code is 1210 (3225 Metric), with dimensions 3.20mm length, 2.50mm width, and 2.80mm maximum thickness.
Yes, it is RoHS3 compliant, REACH unaffected, and halogen free.
The maximum dissipation factor is 10%.
It is supplied in embossed tape packaging with a standard quantity of 1000 pieces per reel.
