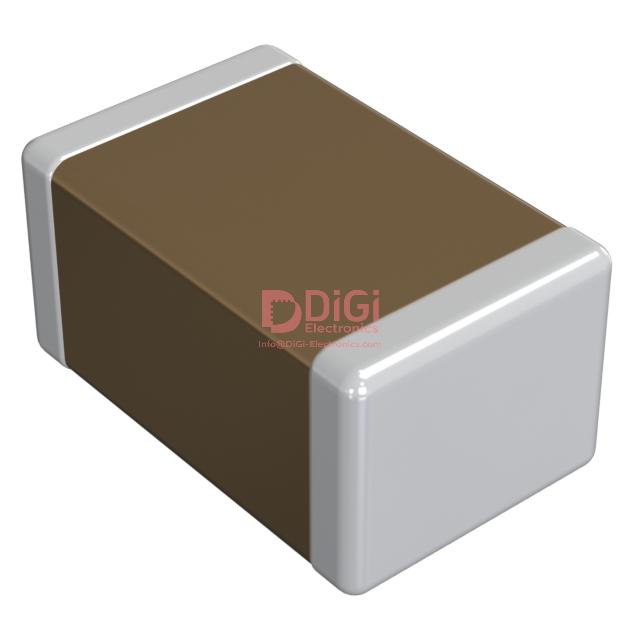

TMK063CG560JT-F The Taiyo Yuden TMK063CG560JT-F is a ceramic capacitor with a capacitance of 56 pF and a voltage rating of 25V. It features a C0G, NP0 temperature coefficient and is designed for general purpose applications.
Mfr Part #:

TMK063CG560JT-F

Available from 1 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
The Taiyo Yuden TMK063CG560JT-F is a ceramic capacitor with a capacitance of 56 pF and a voltage rating of 25V. It features a C0G, NP0 temperature coefficient and is designed for general purpose applications.
✓ Total Stock: 25,000 pcs
$ Price Range: $0.05

TMK063CG560JT-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
25,000 pcs
On Request
25000 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMK063CG560JT-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Length
Mounting Type
Operating Temperature
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

TMK063CG560JT-F Description

Short technical summary and product information.

This Taiyo Yuden TMK063CG560JT-F is a surface mount ceramic capacitor designed for general purpose applications. It offers a capacitance of 56 pF with a tight tolerance of ±5% and a rated voltage of 25V.



The capacitor utilizes a C0G, NP0 temperature coefficient, ensuring stable performance across its operating temperature range of -55°C to 125°C. Its compact 0201 (0603 Metric) package and surface mount type make it suitable for space-constrained designs.



The dimensions of the component are 0.60mm in length and 0.30mm in width, with a maximum thickness of 0.33mm. This makes it ideal for high-density circuit boards where miniaturization is critical.

TMK063CG560JT-F Quick Information

Product Type: Ceramic Capacitor
Series: GRM
Canonical Name: Taiyo Yuden TMK063CG560JT-F Ceramic Capacitor
Subcategory: Ceramic Capacitor

TMK063CG560JT-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMK063CG560JT-F Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMK063CG560JT-F Features

  • Capacitance of 56 pF with ±5% tolerance.
  • Rated for 25V DC operation.
  • Stable C0G, NP0 temperature coefficient.
  • Compact 0201 (0603 Metric) package.
  • Suitable for surface mount applications.

TMK063CG560JT-F Applications

  • Used in RF signal coupling and decoupling circuits.
  • Suitable for timing and oscillator circuits.
  • Ideal for high-density consumer electronics designs.
  • Employed in industrial control systems requiring stable capacitors.

TMK063CG560JT-F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of this capacitor?

56 pF.

What is the rated voltage?

25V.

What is the temperature coefficient?

C0G, NP0.

What is the tolerance?

±5%

What is the package size?

0201 (0603 metric).

What is the operating temperature range?

-55°C to 125°C.

What is the mounting type?

Surface Mount, MLCC.
