TMDX5535EZDSP Evaluation board for TMS320C5535 fixed-point ultra-low-power DSP with on-board XDS100 v2 emulator, 8 MB Flash, and USB 2.0.
Mfr Part #:

TMDX5535EZDSP

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
Evaluation board for TMS320C5535 fixed-point ultra-low-power DSP with on-board XDS100 v2 emulator, 8 MB Flash, and USB 2.0.
✓ Total Stock: 1 pcs

TMDX5535EZDSP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMDX5535EZDSP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Board Type
Contents
Core Processor
DISPLAY
Industrial Grade
Medical Grade
Memory
Military Grade
Mounting Type
Platform
Type
Utilized IC
View Similar Products (0)

TMDX5535EZDSP Description

Short technical summary and product information.

The TMDX5535EZDSP is an evaluation platform for the TMS320C5535 fixed-point ultra-low-power DSP from Texas Instruments. It is part of the eZdsp family and provides a complete development environment including Code Composer Studio v4 IDE. The board features an on-board XDS100 v2 emulator for debugging and benchmarking.



Key hardware includes 8 MB of serial Flash memory, a TLV320AIC3204 programmable low-power stereo audio codec, USB 2.0 high-speed interface, a 96×16-pixel monochrome OLED display, and a micro SD card slot. Audio I/O is provided via line in/mic in and headphone out jacks. A 60-pin expansion connector allows for additional peripheral connectivity.

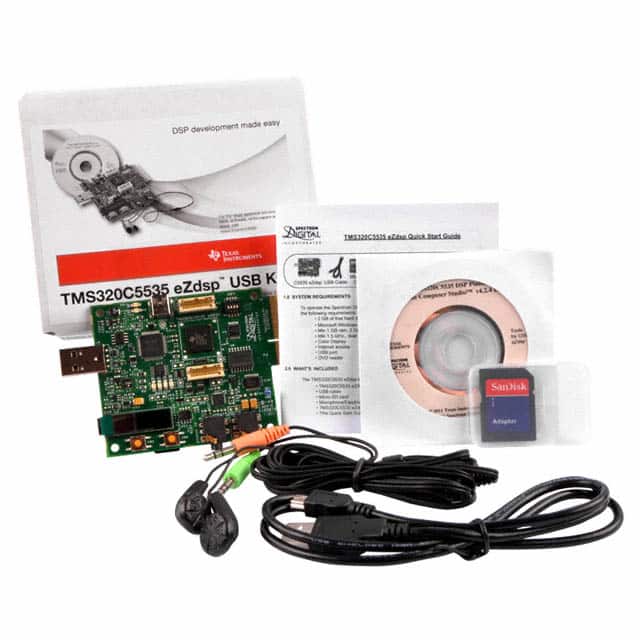

The kit contents include the C5535 eZdsp board, cables, OLED display, accessories, and a software framework for USB audio class and HID applications. Mounting is fixed; the board is designed for benchtop evaluation and prototyping.

TMDX5535EZDSP Quick Information

Product Type: DSP Evaluation Board
Series: eZdsp
Canonical Name: TMS320C5535 eZdsp USB Development Kit
Subcategory: DSP Evaluation Board

TMDX5535EZDSP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMDX5535EZDSP Features

  • On-board XDS100 v2 emulator.
  • 8 MB serial Flash memory.
  • TLV320AIC3204 stereo audio codec.
  • USB 2.0 high speed interface.
  • 96×16 pixel OLED display.

TMDX5535EZDSP Applications

  • Digital signal processing prototyping.
  • Audio algorithm development and testing.
  • USB audio class application development.
  • HID application prototyping.

TMDX5535EZDSP FAQs

6 frequently asked questions generated from this part’s specifications.
该评估板是否符合RoHS标准？

部件声明为RoHS3合规，但未经验证。

使用的DSP核心是什么？

TMS320C5535 fixed-point ultra-low-power DSP。

板载仿真器是什么？

XDS100 v2。

板载存储器容量？

8 MB serial Flash。

提供什么集成开发环境？

Code Composer Studio v4 IDE。

有哪些音频连接器？

Line in/Mic in, headphone out。
