Mfr Part #:

TMDSEMU110-U

Texas Instruments XDS110 JTAG Debug Probe (TMDSEMU110-U) supporting IEEE1149.1 JTAG, SWD, SWO protocols with USB 2.0 High Speed host interface and native EnergyTrace current measurement up to 75mA.

✓ Total Stock: 1 pcs

$ Price Range: $186.39

TMDSEMU110-U Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TMDSEMU110-U Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Programmers, Emulators, and Debuggers
Manufacturer Name	Texas Instruments
Contents	Board(s)
For Use With	DSP, MCU
SVHC Present	Not Present
Type	Emulator

View Similar Products (0)

TMDSEMU110-U Description

Short technical summary and product information.

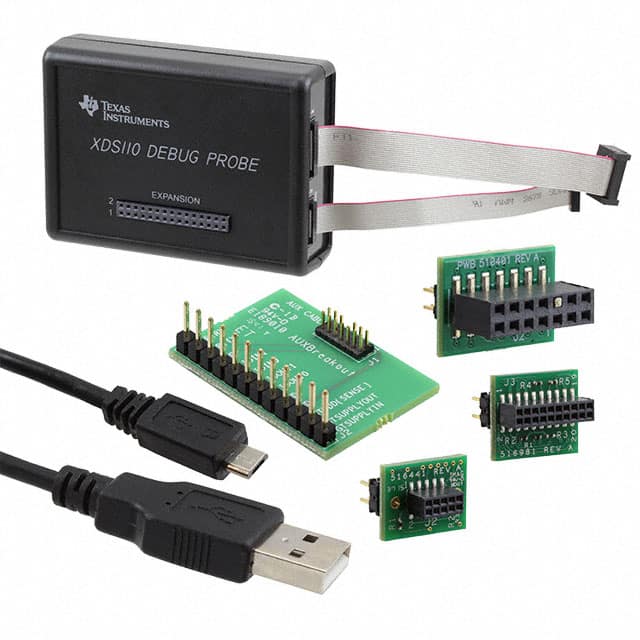

The Texas Instruments TMDSEMU110-U is an XDS110 JTAG debug probe (emulator) designed for TI embedded processors. It supports a wide range of debug protocols including IEEE1149.1 (JTAG), IEEE1149.7 (cJTAG), SWD, and SWO, and provides core and system trace via ETB and SWO. The probe connects to a host PC via USB 2.0 High Speed (480Mbps) and to the target board using a TI 20-pin connector with included adapters for TI 14-pin, Arm 10-pin, and Arm 20-pin headers.

An auxiliary 14-pin port provides EnergyTrace current measurement (75mA native, up to 800mA with optional HDR add-on), a full duplex UART, and four GPIOs. The probe requires Code Composer Studio v7 or later. The package includes the XDS110 debug pod, 20-pin debug cable, 14-pin auxiliary cable, TI 20-14 pin adapter, TI 20-Arm 20 adapter, TI 20-Arm 10 adapter, USB cable, breakout board, and quick start guide. Product dimensions are 260 mm x 200 mm x 50 mm with a weight of 240 g.

TMDSEMU110-U Quick Information

Product Type: Debug Probe (Emulator)

Series: XDS110

Canonical Name: Texas Instruments XDS110 JTAG Debug Probe (TMDSEMU110-U)

Subcategory: Emulator

TMDSEMU110-U Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TMDSEMU110-U Estimated Pricing

Qty	Low	High
1+	$186.39	$186.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMDSEMU110-U Features

Supports JTAG, cJTAG, SWD, SWO protocols.
Core and System Trace via ETB and SWO.
Native EnergyTrace up to 75mA current measurement.
USB 2.0 High Speed 480Mbps host interface.
Includes TI 20-pin and Arm adapter cables.

TMDSEMU110-U Applications

Used for debugging TI embedded processors and MCUs.
Suitable for entry-level debug of DSP and Arm devices.
Ideal for power profiling with EnergyTrace measurement.
Supports trace on Arm and DSP with ETB hardware.

TMDSEMU110-U FAQs

5 frequently asked questions generated from this part’s specifications.

What debug protocols does the TMDSEMU110-U support?

The TMDSEMU110-U supports IEEE1149.1 (JTAG), IEEE1149.7 (cJTAG), SWD, and SWO protocols.

What is the EnergyTrace current measurement range?

Native EnergyTrace measurement is up to 75mA. With the XDS110 EnergyTrace HDR add-on, it can measure up to 800mA.

What is the host interface of the XDS110 debug probe?

The XDS110 connects to a host PC via USB 2.0 High Speed (480Mbps).

Which software is required to use this debug probe?

Code Composer Studio v7 or later is required.

What is included in the package?

The package includes the XDS110 debug pod, 20-pin debug cable, 14-pin auxiliary cable, TI 20-14 pin adapter, TI 20-Arm 20 adapter, TI 20-Arm 10 adapter, USB cable, breakout board, and quick start guide.
