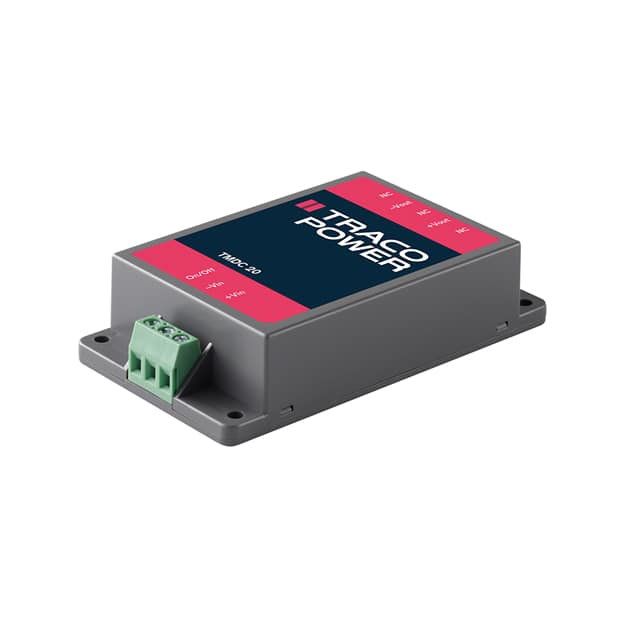

TMDC 20-2411 The Traco Power TMDC 20-2411 is a 20W enclosed DC/DC converter with a 9-36 VDC input and a regulated 5.1 VDC output at 4A. It features 2500 VDC I/O isolation, 90% efficiency, and a wide -40°C to +90°C operating range.
Mfr Part #:

TMDC 20-2411

Available from 1 distributors
Mfr Name: Traco Power
Traco Power
The Traco Power TMDC 20-2411 is a 20W enclosed DC/DC converter with a 9-36 VDC input and a regulated 5.1 VDC output at 4A. It features 2500 VDC I/O isolation, 90% efficiency, and a wide -40°C to +90°C operating range.
✓ Total Stock: 130 pcs
$ Price Range: $63.40 - $64.08

TMDC 20-2411 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMDC 20-2411 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Industrial Grade
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Tape & Reel
Temperature Coefficient
Termination Style
Type
Voltage
Width
View Similar Products (0)

TMDC 20-2411 Description

Short technical summary and product information.

The Traco Power TMDC 20-2411 is a 20-watt, fully encapsulated DC/DC converter from the TMDC 20 Series. It accepts a wide 4:1 input voltage range of 9 to 36 VDC (nominal 24 VDC) and delivers a tightly regulated 5.1 VDC output at up to 4000 mA. The converter achieves a typical efficiency of 90% and provides 2500 VDC input-to-output isolation.



Designed for reliable operation in demanding environments, the TMDC 20-2411 operates over a -40°C to +90°C temperature range (with derating). It features an internal Pi-type input filter to meet EN 55022 Class A EMC standards, and includes protection against short circuits, overload, and overvoltage. A power good LED indicator and remote on/off function are standard.



The converter is housed in a low-profile, fully encapsulated plastic case with a chassis mount design and screw terminal block connections. It requires no minimum load and offers excellent efficiency even at low load conditions. Safety certifications include IEC 62368-1 and UL 62368-1.

TMDC 20-2411 Quick Information

Product Type: DC/DC Converter
Series: TMDC 20
Canonical Name: Traco Power TMDC 20-2411 DC/DC Converter, 20W, 5.1V Output, Chassis Mount
Subcategory: Enclosed Chassis Mount

TMDC 20-2411 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMDC 20-2411 Estimated Pricing

Qty Low High
1+ $64.08 $64.08
10+ $63.40 $63.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMDC 20-2411 Features

  • Wide 4:1 input voltage range 9-36 VDC.
  • High efficiency up to 90% typical.
  • 2500 VDC input-to-output isolation.
  • Chassis mount with screw terminal block.
  • Power good LED and remote on/off function.

TMDC 20-2411 Applications

  • Ideal for industrial control systems.
  • Suitable for ITE (commercial) equipment.
  • Use in distributed power architectures.
  • Works in battery-powered applications.

TMDC 20-2411 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TMDC 20-2411?

The input voltage range is 9 to 36 VDC, with a nominal of 24 VDC.

What is the output voltage and current?

The output voltage is 5.1 VDC and the output current is 4000 mA (4A).

What is the operating temperature range?

The operating temperature range is -40°C to +90°C with derating.

Is the TMDC 20-2411 RoHS compliant?

RoHS compliance is listed as RoHS3 Compliant but is unverified.

What type of mounting does this converter use?

It uses chassis mount with screw terminal block connections.

What safety certifications does the TMDC 20-2411 have?

It is certified to IEC 62368-1 and UL 62368-1, with approvals including CB, CE, and cURus.

Does the converter require a minimum load?

No, a minimum load is not required.
