| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Capacitive Load | |
| Current | |
| DC-OK Function | |
| Efficiency | |
| Height | |
| Input Current - At no load (Typical @ At full load) | |
| Input Current - At no load (Typical @ At no load) | |
| Input Filter | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Regulation - Cross Regulation | |
| Regulation - Input Variation | |
| Regulation - Load Variation | |
| Regulation - Voltage Balance | |
| Remote On/Off Function | |
| Ripple and Noise | |
| Surge Voltage | |
| Type | |
| Under Voltage Lockout | |
| Voltage | |
| Voltage (Nominal) | |
| Width |

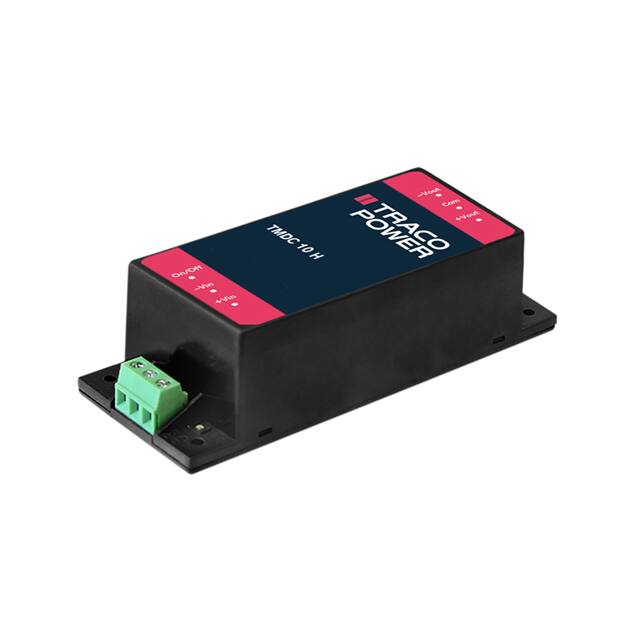

The Traco Power TMDC 10-7223H is a 10 Watt enclosed DC DC converter from the TMDC 10H series. It features a high 2:1 input voltage range of 80-160 VDC and provides fully regulated dual outputs of +/-15VDC, each capable of delivering up to 333mA. The converter boasts an efficiency of 85% and reinforced I/O isolation of 3000 VAC.
Designed for harsh industrial applications, this module operates within a wide temperature range of -40°C to +70°C without derating. It includes integrated filters for EMC compliance (EN 55032 class A emission and EN 55035 immunity) and offers protection against overload, undervoltage, and short circuits. The unit also features DC-OK and remote On/Off functions.
With its chassis mount type and compact dimensions (79.0mm x 34.0mm x 22.0mm), the TMDC 10-7223H is suitable for various industrial and 110 VDC battery applications requiring a safe SELV output. Safety approvals include IEC/EN/UL 62368-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 80-160 VDC.
It provides dual outputs of +15 VDC at 333 mA and -15 VDC at 333 mA.
The power rating is 10W.
The typical efficiency is 85%.
The operating temperature range is -40°C to 70°C.
It uses chassis mount.
It has CB, CE, and cURus approvals.
