| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

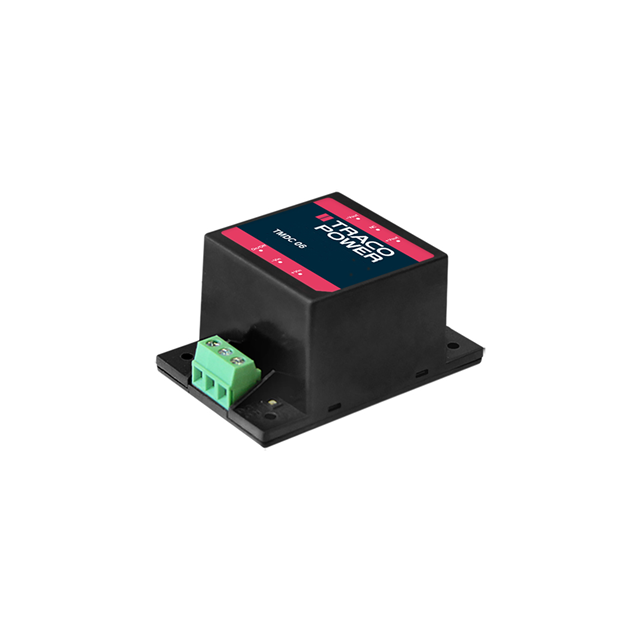

The Traco Power TMDC 06-2422 is a 6 Watt DC/DC converter from the TMDC 06 series, designed for harsh industrial applications. It features a fully encapsulated, chassis-mount package and provides dual outputs of +/-12V at 250mA each.
This converter boasts an ultra-wide 4:1 input voltage range of 9-36 VDC, making it versatile for various power systems. It offers high efficiency of 84% and provides 3000 VDC of I/O isolation. The operating temperature range is -40 to +80 °C without derating.
Integrated filters provide robust EMC capabilities, meeting EN 55032 for emissions and EN 55035 for immunity. Safety approvals include IEC/EN/UL 62368-1. The unit also includes protection against overload, undervoltage, and short circuits, along with DC-OK and remote On/Off functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9V to 36V DC.
The converter provides +12V and -12V outputs.
The maximum output current is 250 mA for each voltage rail.
The typical efficiency is 84%.
It complies with IEC/EN/UL 62368-1 safety standards.
It measures 53mm in length, 34mm in width, and 26.5mm in height, and is chassis mount in a tube package.
