| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

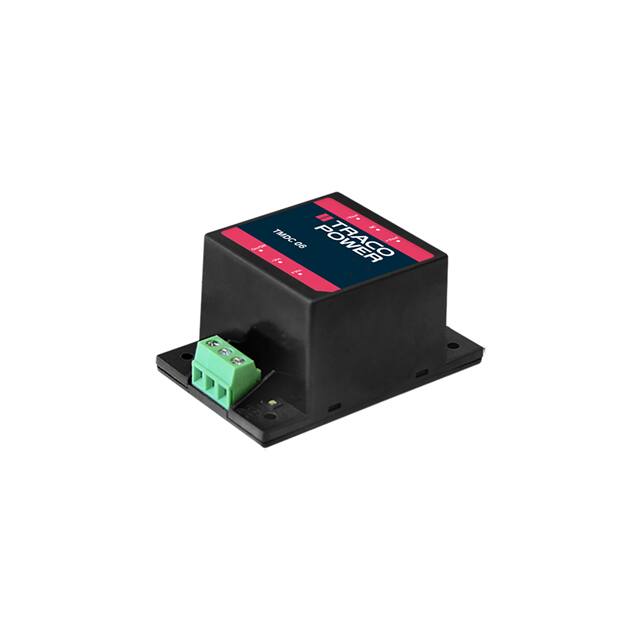

The Traco Power TMDC 06-2413 is a 6 Watt DC/DC converter from the TMDC 06 series, designed for harsh industrial applications. It offers a fully encapsulated, chassis mount design with integrated filters for enhanced EMC capabilities, meeting EN 55032 and EN 55035 standards.
This converter operates with an ultra-wide 4:1 input voltage range of 9-36 VDC and provides a regulated 15 VDC output at 400 mA, delivering 6W of power with 84% efficiency. It features 3000 VDC I/O isolation and a wide operating temperature range of -40 to +80 °C without derating.
The TMDC 06-2413 is built with protection against overload, undervoltage, and short circuits. It also includes DC-OK (LED) and Remote On/Off functions, along with IEC/EN/UL 62368-1 safety approvals. The module's dimensions are 53.0mm x 34.0mm x 26.5mm, making it suitable for various industrial power supply needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15 VDC.
The maximum output current is 400mA.
The input voltage range is 9-36 VDC.
The power rating is 6W.
The operating temperature range is -40 to +80 °C.
The I/O isolation voltage is 3000 VDC.
