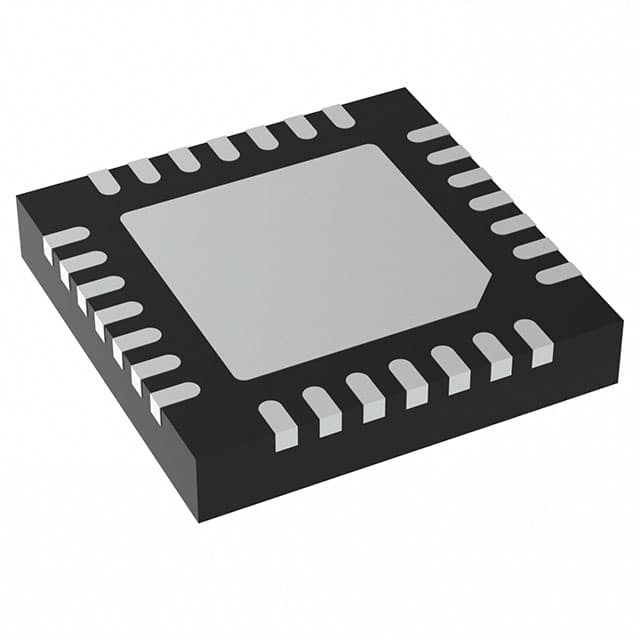

The TMC2209-LA-T from Trinamic Motion Control GmbH is an ultra-silent motor driver IC designed for two-phase bipolar stepper motors. It operates within a voltage range of 4.75V to 29V DC and can handle coil currents up to 2A RMS or 2.8A peak. This integrated circuit features a STEP/DIR interface with advanced microstepping capabilities up to 1/256 via MicroPlyer™ interpolation, enabling smooth and precise motor control.
Key features include StealthChop2™ for silent motor operation, SpreadCycle™ for highly dynamic control, and StallGuard4™ for sensorless stall detection. The device also incorporates CoolStep™ for energy savings up to 75% and offers low RDSon for reduced heat-up. Its internal sense resistor option eliminates the need for external components.
Designed for robust and reliable operation, the TMC2209-LA-T includes full protection and diagnostics. It is housed in a compact 28-QFN (5x5) package with an exposed pad for enhanced thermal performance, suitable for surface mounting. The integrated power MOSFETs and a simple UART interface allow for advanced configuration and tuning, making it ideal for applications such as 3D printers, automation control, and other battery-operated equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5.5V to 29V DC.
2A RMS continuous, 2.8A peak.
From full step to 1/256 step.
Step/Direction and UART.
170mΩ typical for both low-side and high-side at 25°C.
28-VFQFN Exposed Pad (28-QFN 5x5).
-40°C to 125°C junction temperature.
