Mfr Part #:

TMAG5115B1CQDBZR

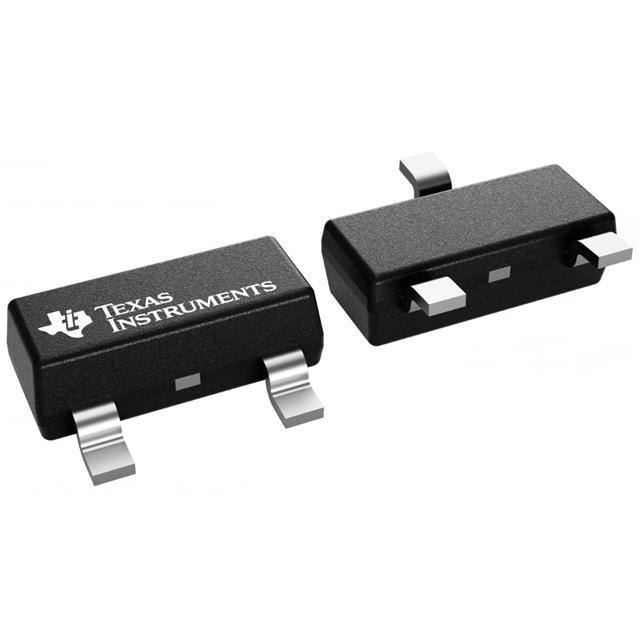

Name: TMAG5115B1CQDBZR
Brand: Texas Instruments
SKU: TMAG5115B1CQDBZR

Mfr Name: Texas Instruments

Description:

HIGH-SPEED HALL-EFFECT LATCH WIT

Stock on Request

TMAG5115B1CQDBZR Description

Short technical summary and product information.

HIGH-SPEED HALL-EFFECT LATCH WIT

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Magnetic Sensors - Switches (Solid State)
Manufacturer Name	Texas Instruments
Current	8mA
Features	Temperature Compensated
Function	Latch
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 125°C (TA)
Output Type	Open Drain
Polarization	North Pole, South Pole
Sensing Range	4mT Trip, -4mT Release
Supplier Device Package	SOT-23-3
Technology	Hall Effect
Test Condition	-40°C ~ 125°C
Voltage	2.5V ~ 26V
