| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,000 pcs
|
13000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Frequency | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The Texas Instruments TM4C1290NCZADT3 is a high-performance 32-bit microcontroller designed for embedded applications. It features an ARM Cortex-M4F processor core capable of 120MHz operation, delivering 150 DMIPS performance.
This MCU is equipped with 1MB of Flash memory for program storage and 256KB of single-cycle System SRAM for data. It includes a variety of peripherals such as 24x 12-bit ADCs, 8 UARTs, 10 I2C modules, 2 CAN controllers, and USB 2.0 OTG/Host/Device support. Additional features include DMA, Motion Control PWM, and watchdog timers.

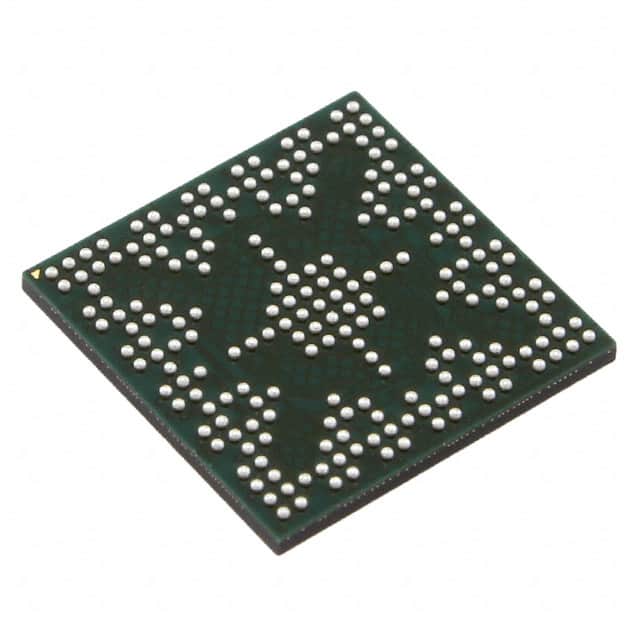

The TM4C1290NCZADT3 is housed in a 212-NFBGA (10x10 mm) package and is designed for surface mounting. It operates within a temperature range of -40°C to 105°C (TA) and requires a supply voltage between 2.97V and 3.63V.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.32 | $8.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.97V to 3.63V.
The package is a 212-NFBGA (10x10 mm) and also referred to as 212-VFBGA.
The operating temperature range is -40°C to 105°C (TA).
The Flash memory size is 1MB (1M x 8).
The RAM size is 256K x 8.
It uses an ARM Cortex-M4F processor core.
Connectivity includes CANbus, EBI/EMI, I²C, IrDA, QSSI, UART/USART, and USB OTG.
