| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
236 pcs
|
236 pcs | On Request | 1 | On Request | On Request | 1531+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
This Texas Instruments TM4C123BH6ZRBI7R is a 32-bit microcontroller based on the ARM Cortex-M4F core, operating at a speed of 80MHz. It offers 256KB of FLASH program memory and 32KB of RAM, along with 2KB of EEPROM.
The microcontroller supports a wide range of connectivity options including CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, and UART/USART. It features 120 I/O pins and includes peripherals such as Brown-out Detect/Reset, DMA, Motion PWM, POR, and WDT. The device operates within a voltage range of 1.08V to 3.63V and has an internal oscillator.

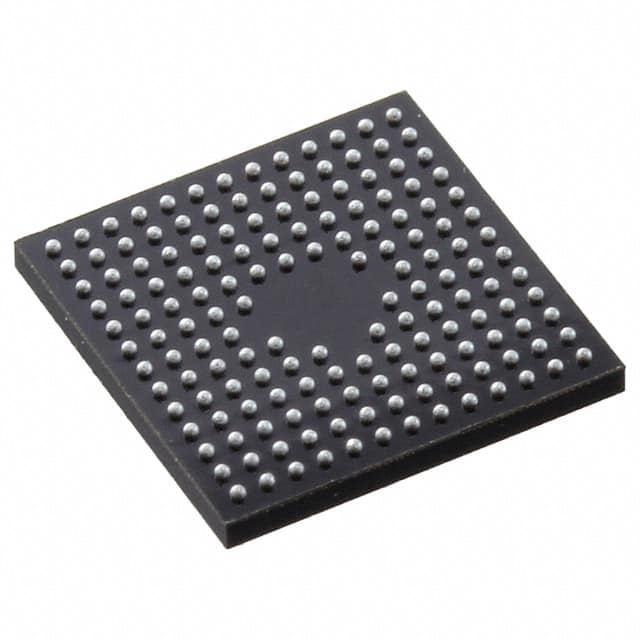

Packaged in a 157-VFBGA (Microstar Junior 9x9) format, the TM4C123BH6ZRBI7R is designed for surface mounting. It operates within a temperature range of -40°C to 85°C (TA). The part is supplied in Tape & Reel packaging.
Key specifications include 24-channel 12-bit A/D data converters. This component is suitable for various embedded applications requiring robust processing capabilities and extensive peripheral support.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core processor is ARM Cortex-M4F.
The operating speed is 80 MHz.
It has 256KB (256K x 8) of FLASH program memory.
The RAM size is 32K x 8.
Connectivity options include CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, and UART/USART.
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a 157-VFBGA package.
