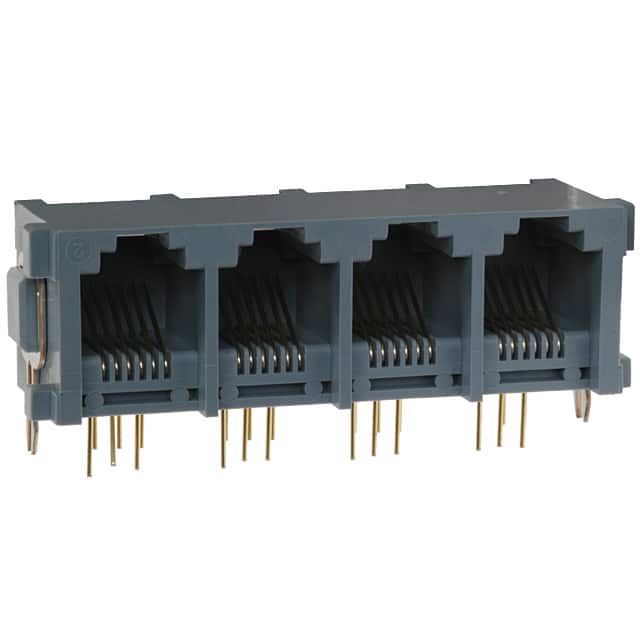

The Hirose TM2REA-2424 is a 4-port 6P6C modular jack connector designed for telecommunications and networking applications. Each port supports 6 positions and 6 contacts, compatible with RJ11, RJ12, RJ14, and RJ25 plugs. The connector is through hole mounted and features a right angle (90°) orientation with the tab facing up. It is unshielded and does not include LED indicators.
Key electrical specifications include a rated voltage of 125 V AC and a rated current of 500 mA. The initial contact resistance is 200 mΩ maximum, and the insulation resistance is 100 MΩ minimum at 100 V DC. The connector can withstand a voltage proof of 500 V AC for 1 minute without flashover or breakdown. It operates over a temperature range of -55°C to +85°C and can be stored from -25°C to +60°C.
Mechanically, the connector features board locks and panel stops for secure mounting. The contacts are made of phosphor bronze with a gold finish, ensuring reliable connections. The TM2REA-2424 has been tested for mechanical durability with 200 insertion/extraction cycles, vibration, shock, and environmental conditions including damp heat, rapid temperature change, and salt mist. It meets solderability requirements with 95% coverage after immersion in 245°C solder.
This modular jack is suitable for applications in telecommunications equipment, networking devices, and data communication systems where a compact 4-port unshielded connection is required. Its through hole mounting provides robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.97 | $7.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions and 6 contacts (6P6C), compatible with RJ11, RJ12, RJ14, and RJ25 connectors.
The rated current is 500 mA.
The rated voltage is 125 V AC.
It is through hole mounted with a right angle (90°) orientation and solder termination.
The operating temperature range is -55°C to +85°C.
It has 4 ports.
No, it is unshielded.
