| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage | |
| Height (Max) | |
| Lead Spacing | |
| Lens Color | |
| Lens Style | |
| Lens Transparency | |
| Luminous Flux | |
| Mounting Type | |
| Operating Temperature Range | |
| Thermal Resistance Junction-to-Ambient | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

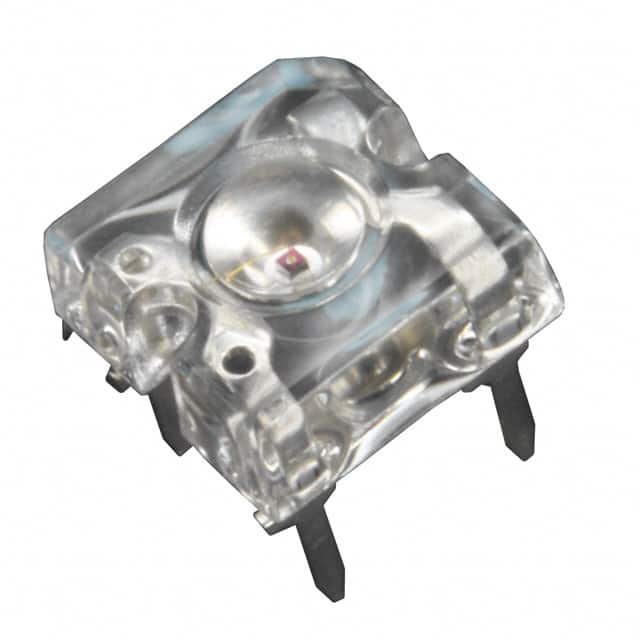

The Vishay Dale TLWR8900 is a red LED from the TELUX power series, designed for applications demanding supreme luminous flux. It utilizes AllnGaP technology and is housed in an industry-standard 7.62 mm square package, specifically a 4-DIP (0.200", 5.08mm) with through-hole mounting.
This LED offers a typical forward voltage of 2.2V at 70mA and emits light with a typical wavelength of 616nm. Its clear, round lens with a domed top provides a viewing angle of 90°. The component has a maximum height of 6.40mm and dimensions of 7.62mm L x 7.62mm W. The supreme heat dissipation, with a thermal resistance of 90 K/W, allows for operation at high ambient temperatures, ranging from -40°C to +110°C.
Key features include high luminous flux, compatibility with wave solder processes, and AEC-Q101 qualification, making it suitable for automotive applications like exterior lighting, dashboard illumination, and tail/stop/turn signals. The LED is packed in tubes for automatic insertion and is binned for luminous flux, forward voltage, and color for homogenous light appearance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the TLWR8900 LED is 2.2V at 70mA.
The typical luminous flux of the TLWR8900 LED is 3700mlm at 70mA.
The typical peak wavelength of the TLWR8900 LED is 616nm at 70mA.
The TLWR8900 LED can operate in a temperature range of -40°C to +110°C.
The TLWR8900 LED is supplied in a 4-DIP (0.200", 5.08mm) package.
The TLWR8900 LED is designed for through-hole mounting.
