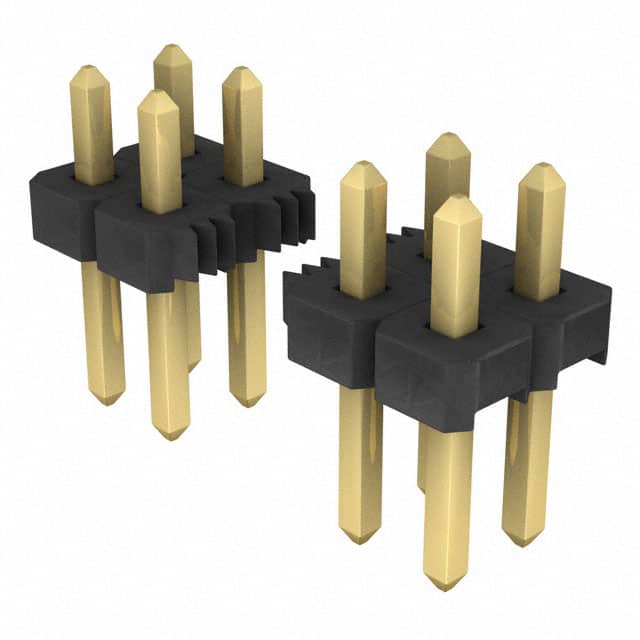

The TLW-110-05-G-D is a 20-position, 2-row male pin header from Samtec with a 2.54mm pitch. It features through-hole mounting and solder termination, making it suitable for board-to-board or cable connections. The contacts are made of phosphor bronze with a gold plating thickness of 0.25µm, ensuring reliable electrical performance. The header is unshrouded with a push-pull fastening type, and the insulation is molded from black liquid crystal polymer (LCP). Electrical rating is 5.2A per contact, and the operating temperature range is -55°C to 125°C. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
The header has a square contact shape with an overall contact length of 8.51mm and a contact length of 2.67mm. The insulation height is 1.52mm. All 20 positions are loaded. This part is commonly used in applications requiring reliable interconnection in industrial, computing, and telecommunications equipment.
Package information such as standard package quantity is not available from the datasheet. The component is a through-hole device with no shrouding, providing flexibility in mating with various female connectors. The gold finish enhances corrosion resistance and ensures low contact resistance over many mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.11 | $4.11 |
| 50+ | $3.70 | $3.70 |
| 100+ | $3.36 | $3.36 |
| 500+ | $2.31 | $2.31 |
| 1,000+ | $2.13 | $2.13 |
| 5,000+ | $2.08 | $2.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
5.2A per contact.
Through hole.
2 rows.
-55°C to 125°C.
Gold plating over phosphor bronze.
