| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

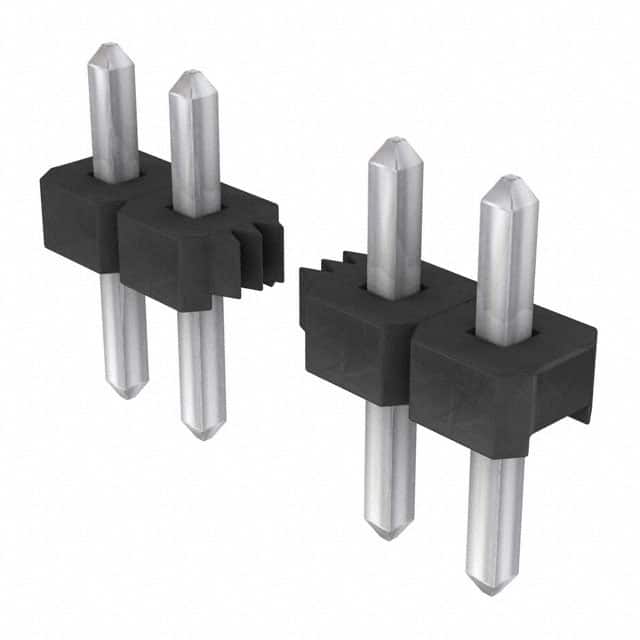

The Samtec TLW-106-06-T-S is a 6-position, single-row, unshrouded male pin header from the TLW series. It features a 2.54mm (0.100") pitch and is designed for through-hole mounting with solder termination. The header uses phosphor bronze contacts with a matte tin finish over 50 µ" (1.27 µm) nickel underplating, ensuring reliable electrical connections.
With a current rating of 5.2A per contact (when two pins are powered), it is suitable for board-to-board or cable interconnect applications. The operating temperature range is -55°C to +105°C with tin plating. The insulation material is black liquid crystal polymer (LCP) with an insulation height of 1.52mm (0.060").
This header is part of Samtec's TLW series, which offers a low-profile board stacking solution. The unshrouded design allows for versatile mating with various socket connectors. The lead style "06" provides an overall contact length of 0.300" (7.62mm) with a contact length of 0.105" (2.67mm).
The component is packaged in a through-hole, solder-terminated format. It is RoHS3 compliant and lead-free solderable, though compliance certifications are unverified from the manufacturer page.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 50+ | $0.96 | $0.96 |
| 100+ | $0.70 | $0.70 |
| 1,000+ | $0.52 | $0.52 |
| 2,000+ | $0.47 | $0.47 |
| 5,000+ | $0.37 | $0.37 |
| 10,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100").
5.2A per contact (2 pins powered).
Through-hole mounting.
-55°C to +105°C.
Phosphor bronze contact material with matte tin plating.
Samtec TLW series.
