| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,700 pcs
|
13700 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

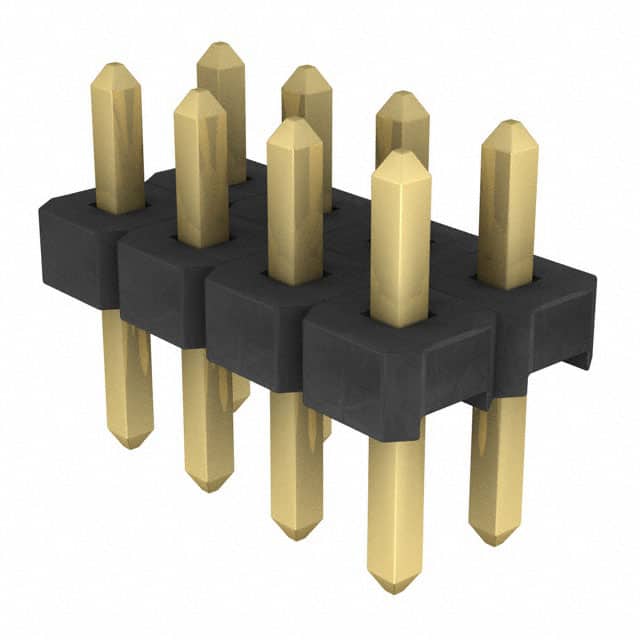

The Samtec Inc. TLW-104-06-G-D is a male pin header designed for board-to-board or cable applications. It offers 8 positions arranged in 2 rows with a standard pitch of 2.54mm (0.100").
This header features a through-hole mounting type and a solder termination. The contacts are made of phosphor bronze with a gold plating, ensuring reliable conductivity. The insulation material is Liquid Crystal Polymer (LCP) in black, with an insulation height of 1.52mm.
Operating temperature ranges from -55°C to 125°C. The contact length is 2.67mm, with an overall contact length of 7.62mm. The header is unshrouded and utilizes a push-pull fastening type. It is rated for 5.2A per contact.
Compliance includes RoHS3, MSL 1, and REACH unaffected status, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54mm (0.100").
5.2A per contact.
Through hole.
Gold with 0.25µm thickness.
-55°C to 125°C.
Liquid Crystal Polymer (LCP).
