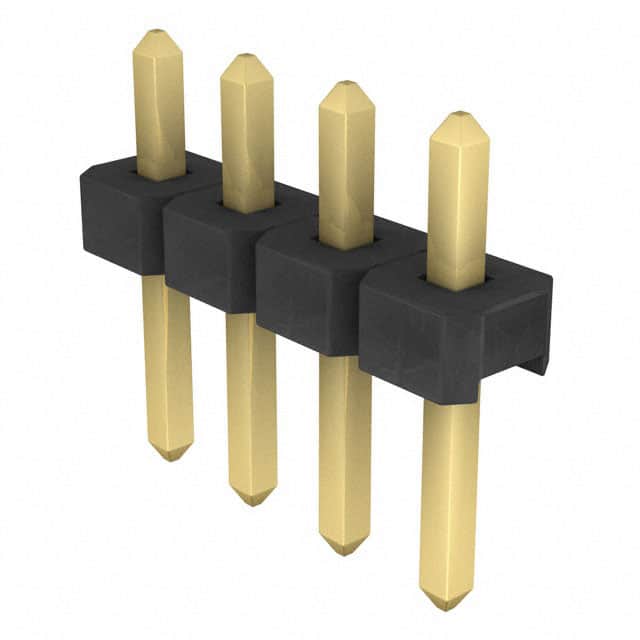

The Samtec TLW-104-05-G-S is a 4-position single row unshrouded header from the TLW series, featuring a low profile design for board stacking applications. It uses a 2.54mm pitch and is terminated via through-hole solder. The contacts are made of phosphor bronze with a 10µin (0.25µm) gold plating on the contact area and gold flash on the tail, ensuring reliable electrical performance.
This header is rated for 5.2A per contact (with 2 pins powered) and operates over a temperature range of -55°C to 125°C when using gold plating. The insulator is black Liquid Crystal Polymer (LCP), providing good mechanical strength and thermal stability. The lead style -05 results in an overall contact length of 8.51mm (0.335").
Designed for board-to-board or cable connections, the TLW-104-05-G-S mates with Samtec sockets such as BSW, CES, SLW, and HLE series. Its unshrouded design allows for flexible mating arrangements. The through-hole mounting provides robust mechanical attachment suitable for prototyping and production environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 100+ | $1.04 | $1.04 |
| 500+ | $1.03 | $1.03 |
| 2,000+ | $0.64 | $0.64 |
| 5,000+ | $0.57 | $0.57 |
| 10,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100 inches).
5.2A per contact (with 2 pins powered).
Through-hole solder termination.
-55°C to 125°C (with gold plating).
Gold, 10µin (0.25µm) thickness on the contact area.
Black Liquid Crystal Polymer (LCP).
