| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
987 pcs
|
987 pcs | On Request | 1 | On Request | On Request | 631 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

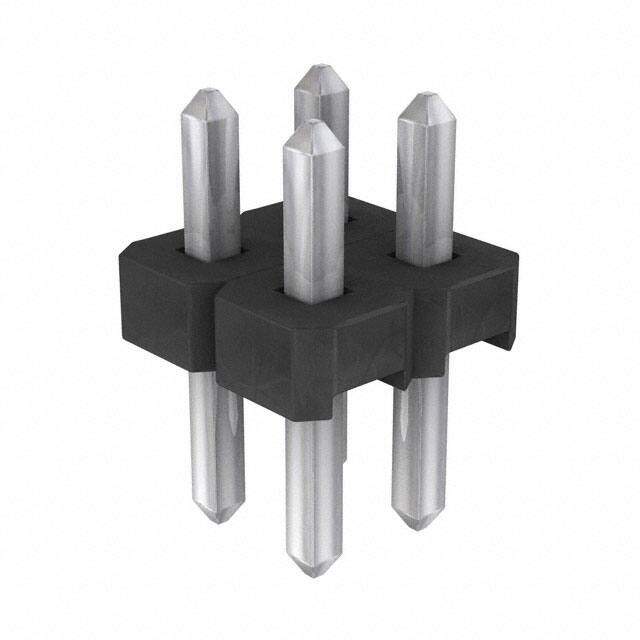

The Samtec TLW-102-06-T-D is a low-profile unshrouded through-hole strip header from the TLW series. It features 4 positions arranged in 2 rows with a 2.54mm (0.100") pitch and row spacing. The connector is designed for board-to-board or cable connections and offers a variety of mating socket options from Samtec.
Mechanically, the header uses 0.025" square phosphor bronze posts with a tin contact finish. The post length is 2.67mm (0.105") and the overall contact length is 7.62mm (0.300"). The insulation is made of black Liquid Crystal Polymer (LCP) with a height of 1.52mm (0.060"). Termination is through-hole solder, and the fastening type is push-pull.
Electrically, the device is rated for 5.2A per contact. It operates over a temperature range of -55°C to 105°C. The header is compliant with RoHS, REACH, and is halogen free. Moisture Sensitivity Level is 1 (unlimited). Packaging is bulk.
Typical applications include board stacking and cable-to-board interconnects in industrial, consumer, and data communication equipment. The TLW series mates with Samtec socket strips such as SSW, BCS, BSW, and others.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.74 | $0.74 |
| 50+ | $0.69 | $0.69 |
| 100+ | $0.64 | $0.64 |
| 500+ | $0.59 | $0.59 |
| 1,000+ | $0.35 | $0.35 |
| 2,000+ | $0.29 | $0.29 |
| 5,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions (all loaded).
2.54mm (0.100").
5.2A per contact.
Through hole.
-55°C to 105°C.
Tin.
Liquid Crystal Polymer (LCP).
