| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| SVHC Present | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |

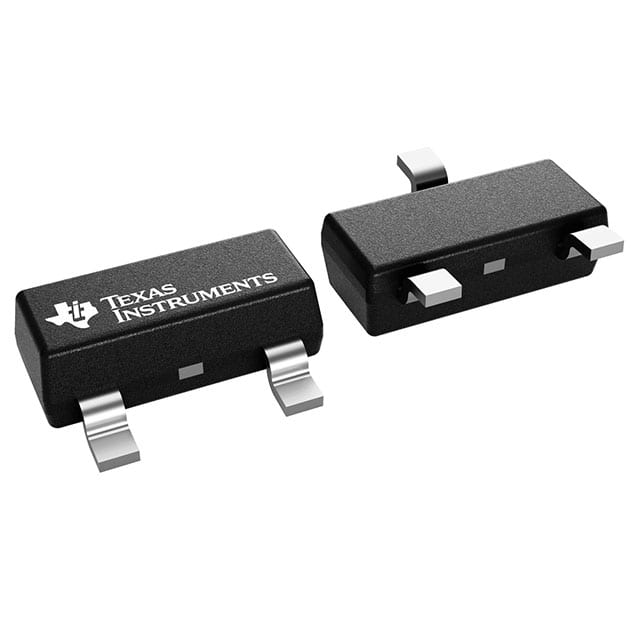

The Texas Instruments TLV803EA30DBZR is a low-power voltage supervisor designed for reliable system monitoring. It initiates a reset signal when the supply voltage drops below a factory programmed threshold, ensuring system integrity.
Key electrical specifications include a supply voltage range from 0.7V to 6V, a typical supply current of 250 nA, and a high accuracy of ±0.5% for under-voltage detection. The device offers a fixed reset time delay and an active-low open-drain output.
This voltage supervisor is suitable for applications requiring low quiescent current and high accuracy, such as portable and battery-powered equipment. It is available in a compact SOT-23-3 surface-mount package, making it ideal for space-constrained designs.
The operating temperature range is -40°C to +125°C, providing robust performance in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 0.7 V to 6 V.
It is available in a SOT-23-3 surface-mount package.
-40°C to 125°C (TA).
250 nA typical.
The minimum reset timeout is 130 ms.
±0.5% typical.
Open-drain, active-low.
