TLV7021DPWR The TLV7021DPWR is a single-channel comparator from Texas Instruments featuring an open-drain output and a propagation delay of 350ns. It is designed for operation in a wide temperature range.
Mfr Part #:

TLV7021DPWR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TLV7021DPWR is a single-channel comparator from Texas Instruments featuring an open-drain output and a propagation delay of 350ns. It is designed for operation in a wide temperature range.
✓ Total Stock: 20,945 pcs
$ Price Range: $0.17

TLV7021DPWR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
12,063 pcs
On Request
12063 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,102 pcs
On Request
8102 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
780 pcs
On Request
780 pcs On Request 1 On Request On Request 1727+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLV7021DPWR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
CMRR, PSRR (Typ)
Current
Hysteresis
Lead Spacing
Mounting Type
Number of Elements
Operating Temperature
Output Type
Propagation Delay (Max)
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

TLV7021DPWR Description

Short technical summary and product information.

The Texas Instruments TLV7021DPWR is a single-channel comparator IC designed for low-power applications. It features an open-drain output type and a maximum propagation delay of 350ns, making it suitable for fast response applications.



This comparator operates over a wide temperature range of -40°C to 125°C. It has a supply voltage range from 1.6V to 5.5V and a low quiescent current of 0.005mA per channel. The device also includes features like internal hysteresis and rail-to-rail input capability.

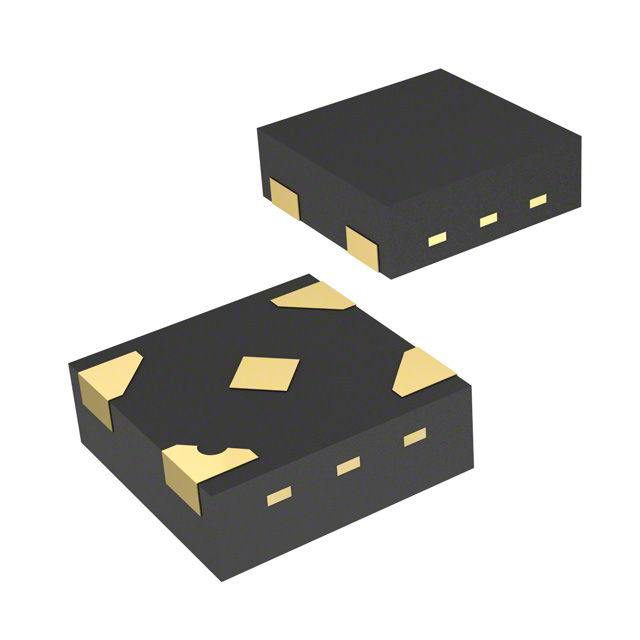

The TLV7021DPWR is available in a compact 5-X2SON package, suitable for space-constrained designs. Its surface mount type facilitates integration into various electronic circuits.



Key electrical characteristics include an offset voltage of 8mV (max) at 25°C and hysteresis of 4.2mV. It also provides good Common-Mode Rejection Ratio (CMRR) and Power Supply Rejection Ratio (PSRR) of 78dB.

TLV7021DPWR Quick Information

Product Type: Comparator
Canonical Name: TLV7021DPWR Comparator
Subcategory: Comparators

TLV7021DPWR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV7021DPWR Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLV7021DPWR Features

  • Single-channel comparator with open-drain output.
  • Fast 350ns maximum propagation delay.
  • Wide operating temperature range: -40°C to 125°C.
  • Low quiescent current of 0.005mA.
  • Compact 5-X2SON surface mount package.

TLV7021DPWR Applications

  • Ideal for low-power monitoring circuits.
  • Suitable for battery-powered devices.
  • Used in space-constrained designs.
  • Fast response time applications.

TLV7021DPWR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TLV7021DPWR?

The operating temperature range is -40°C to 125°C.

What type of output does the TLV7021DPWR have?

The TLV7021DPWR has an open-drain output type.

What is the maximum propagation delay of the TLV7021DPWR?

The maximum propagation delay is 350ns.

What is the supply voltage range for this comparator?

The supply voltage ranges from 1.6V to 5.5V.

What is the package type for the TLV7021DPWR?

The TLV7021DPWR is available in a 5-X2SON package.
