| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
10,044 pcs
|
10044 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,500 pcs
|
8500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,619 pcs
|
1619 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Features | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TLV62585RWTR is a high-efficiency synchronous buck converter designed for power management applications. It operates with an input voltage range of 2.5V to 5.5V and can deliver up to 3A of output current. The output voltage is adjustable from 0.6V to the input voltage, providing flexibility for various designs.
This converter utilizes a COT control mode and features a typical switching frequency of 1.5MHz, contributing to its efficiency of up to 95%. Key features include light load efficiency, output discharge, over-current protection, power good output, pre-bias start-up, and fixed UVLO. The device has a low operating quiescent current of 35µA.

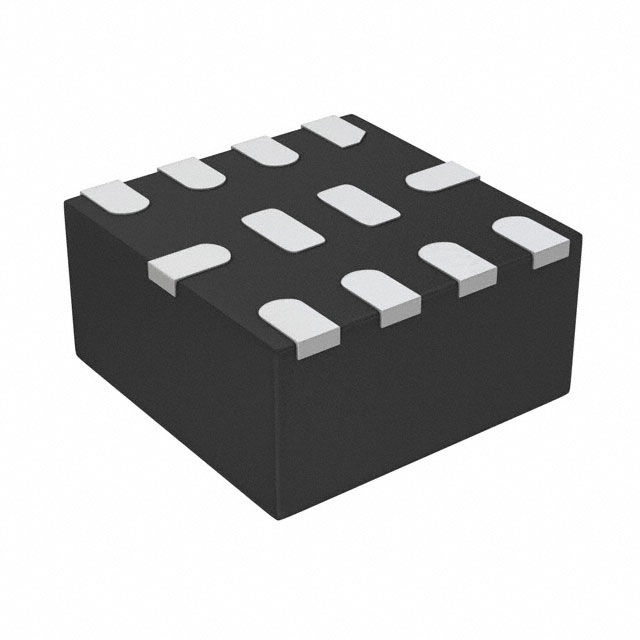

The TLV62585RWTR is available in a 12-VQFN-HR (2x2) package, suitable for surface mount applications. It operates within a temperature range of -40°C to 125°C (TJ). The synchronous rectification ensures high efficiency, and features like short circuit protection and thermal shutdown protection enhance reliability.
This step-down converter is ideal for applications requiring efficient power conversion with adjustable output capabilities. Its compact package and robust feature set make it a versatile choice for embedded systems and portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.5V to 5.5V.
The maximum output current is 3A.
The output voltage is adjustable from 0.6V to the input voltage.
The typical switching frequency is 1.5MHz.
The operating temperature range is -40°C to 125°C.
It is available in a 12-VQFN-HR (2x2) package.
