| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109,576 pcs
|
109576 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package Quantity | |
| Quiescent Current | |
| Topology |
The TLV62130A from Texas Instruments is a high-performance DC/DC switching regulator designed for step-down conversion. It operates with an input voltage range of 3V to 17V and can deliver up to 3A of output current.
The device offers an adjustable output voltage, ranging from 0.9V to 5.5V, providing flexibility for various power supply designs. Key features include a low quiescent current of 19 µA typical, enabling efficient operation in light load conditions. The control mode utilizes Constant on-time (COT) and DCS-Control for stable regulation.

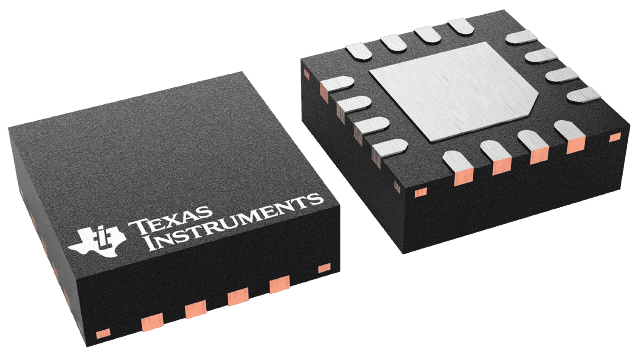

Packaged in a compact 3mm x 3mm VQFN-16 package, the TLV62130A is suitable for space-constrained applications. It supports surface mount installation. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environments. Additional features include Enable, Light Load Efficiency, Output discharge, Power good, Pre-Bias Start-Up, Synchronous Rectification, Tracking, and Voltage Margining.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3 V to 17 V.
The maximum output current is 3 A.
The output voltage can be adjusted from 0.9 V to 5.5 V.
The typical quiescent current is 19 µA.
The operating temperature range is -40°C to 85°C.
The TLV62130A is available in a 3 mm x 3 mm VQFN-16 package.
