| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-23 21:33:16 |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Voltage |

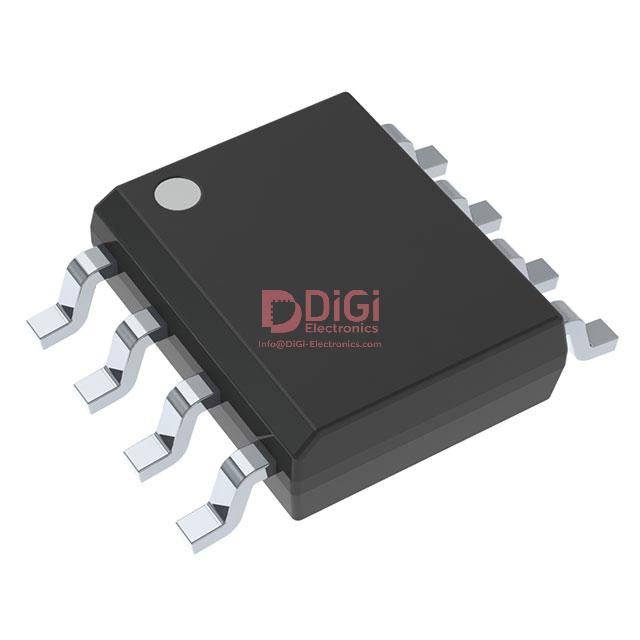

The TLV5618AQDRG4 from Texas Instruments is a 12-bit digital-to-analog converter (DAC) designed for various data acquisition applications. This component offers a dual-channel output, providing two independent DAC channels within a single package.
Key electrical specifications include a 12-bit resolution and a voltage output that is buffered. It supports an operating voltage range from 2.7V to 5V, making it versatile for different system power requirements. The device utilizes an SPI interface for digital communication and an external reference type. Its architecture is a String DAC, and it boasts a settling time of 10µs with an Integral Non-Linearity (INL) of ±2, ±0.5.
The TLV5618AQDRG4 is housed in an 8-SOIC package, suitable for surface mount applications. It operates within a temperature range of -40°C to 125°C. The component is designed for reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLV5618AQDRG4 has a resolution of 12 bits.
The TLV5618AQDRG4 features 2 DAC channels.
The TLV5618AQDRG4 operates from 2.7V to 3.3V and 5V.
The TLV5618AQDRG4 operates from -40°C to 125°C.
The TLV5618AQDRG4 is supplied in an 8-SOIC package.
The settling time for the TLV5618AQDRG4 is 10µs.
